Air Flow Research

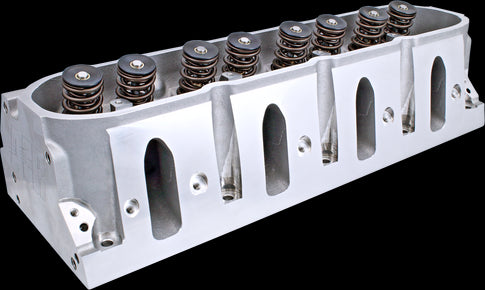

LSX 210cc Enforcer Cylinder Head 64cc As Cast Assembly 1506
LSX 210cc Enforcer Cylinder Head 64cc As Cast Assembly 1506
Regular price
$780.00 USD
Regular price
Sale price
$780.00 USD
Unit price
/
per
SKU:AFR1506
Out of stock
Couldn't load pickup availability
Enforcer Aluminum Cylinder Heads
This affordable, as-cast aluminum cylinder head is ideal for budget-minded, dual-purpose street/strip applications. Sold completely assembled, Enforcer heads are fitted with high-quality components including ARP rocker studs, PAC Racing springs, Viton valve seals, ductile iron seats and stainless steel valves. Sold individually.
Note: Compatible with small, 3.780" bore engines.
Cylinder Head - Enforcer - Assembled - 2.000 / 1.570 in Valves - 210 cc Intake - 64 cc Chamber - 1.290 in Springs - Aluminum - GM LS-Series - Sold as Each - Brand: Air Flow Research - Part Number: 1506
|
Brand
|
Air Flow Research
|
|
Part Number
|
1506
|
|
Product Line
|
LS1 Enforcer
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
64 cc
|
|
Plug Angle
|
Angle
|
|
Intake Runner Volume
|
210 cc
|
|
Exhaust Runner Volume
|
82 cc
|
|
Intake Port Shape
|
Cathedral
|
|
Intake Port Location
|
Stock
|
|
Intake Port Height
|
3.190 in
|
|
Intake Port Width
|
1.015 in
|
|
Exhaust Port Shape
|
Round
|
|
Exhaust Port Location
|
Stock
|
|
Exhaust Port Height
|
1.400 in
|
|
Exhaust Port Width
|
1.660 in
|
|
Intake Valve Size
|
2.000 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Intake Valve Length
|
4.900 in
|
|
Exhaust Valve Size
|
1.570 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Exhaust Valve Length
|
4.915 in
|
|
Valve Spring Included
|
Yes
|
|
Intended Camshaft Style
|
Hydraulic Roller
|
|
Maximum Lift
|
0.600 in
|
|
Maximum RPM
|
6500
|
|
Valve Spring Diameter
|
1.290 in
|
|
Valve Spring Number
|
Dual
|
|
Valve Spring Damper
|
No
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Titanium
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Steel
|
|
Valve Lock Angle
|
7 Degree
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Material
|
Viton
|
|
Rocker Studs Included
|
No
|
|
Pushrod Guide Plate Included
|
No
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Center Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Intake Valve Angle
|
15 Degree
|
|
Exhaust Valve Angle
|
15 Degree
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
