• AFCO Racing Steel Shock Twin Tube 19 Series Big Body 7 In Comp 4/Reb 6 1974-6
1 3

AFCO Racing Products

AFCO Racing Steel Shock Twin Tube 19 Series Big Body 7 In Comp 4/Reb 6 1974-6

AFCO Racing Steel Shock Twin Tube 19 Series Big Body 7 In Comp 4/Reb 6 1974-6

$209.99 USD
$209.99 USD
Sale Sold out
Shipping Policy

AFC1974-6

Out of stock

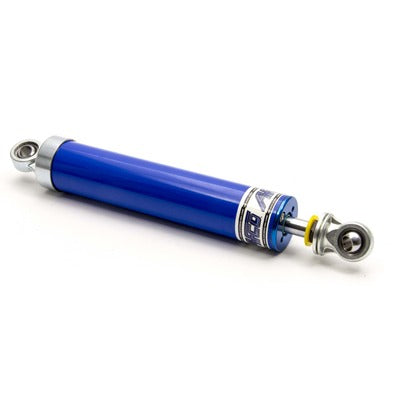

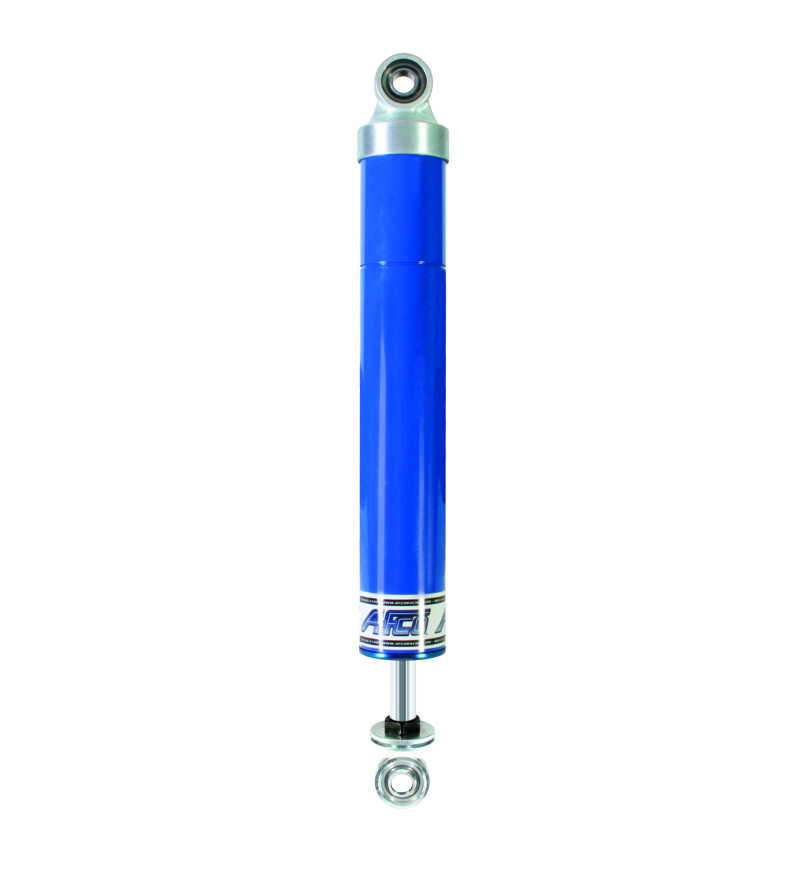

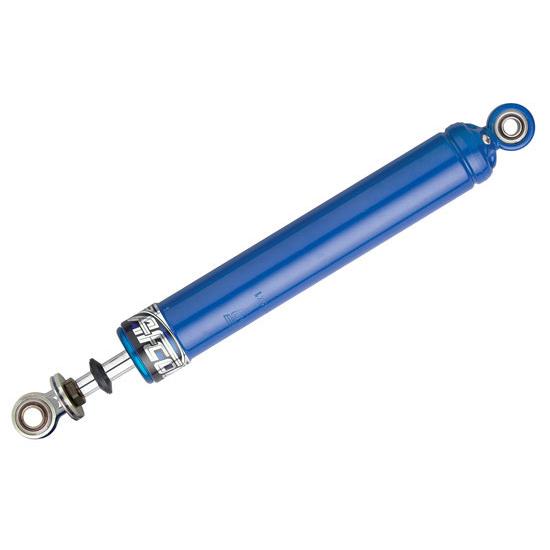

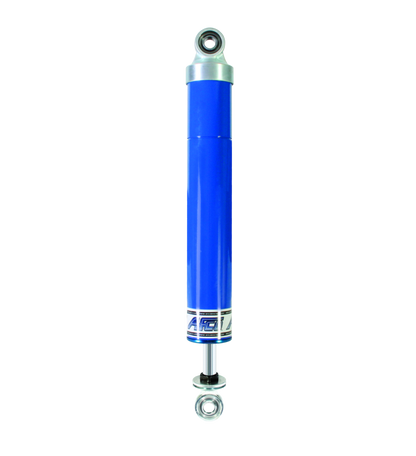

AFCO steel take apart shocks. Owner rebuildable, twin tube, will work with or without coil-over spring. Body is 2.02" outside diameter, so it will fit most modifieds on the market. Shim stack technology provides consistent results. IMCA Approved. 5/8" Shaft.

  • O.D.: 2.02''
  • Extended Length: 19.760''
  • Collapsed Length: 12.850''
  • Upper Mount: Eyelet
  • Lower Mount: Eyelet
  • 7'' Stroke
  • Compressed Valving: 4
  • Rebound Valving: 6
  • MPN: 1974-6

Shock Type: Twin Tube
Shock Adjustability: Non-Adjustable
Shock Body Material: Steel
Shock Body Type: Smooth
Shock Body Size: Large Body
Compression Valving: 4
Rebound Valving: 6
Shock Stroke: 7
Upper Shock Mount: 1/2" Spherical Rod End
Lower Shock Mount: 1/2" Spherical Rod End
Extended Length Range: 19.00" to 19.99"
Extended Length: 19.5"
Compressed Length Range: 12.00" to 12.99"
Compressed Length: 12.75"
Schrader Valve: No
Finish: Powder Coated
Coil-Over Compatible: Yes
Body Diameter: 2.00"
Valve Positions: 4 compression - 6 rebound
Rebuildable: Yes
MFG. Part #: 1974-6
Sold in Quantity: Each
Shock Eyelet Width: .625"
Bolt Hole Circle: .500"
Hardware Included: No
