AFCO Racing Steel Shock Twin Tube 15 Series Small Body 7 In Comp 5/Reb 5 1575

AFCO Racing Steel Shock Twin Tube 15 Series Small Body 7 In Comp 5/Reb 5 1575

$109.99 USD
$109.99 USD
Sale Sold out
Shipping Policy

AFC1575

Out of stock

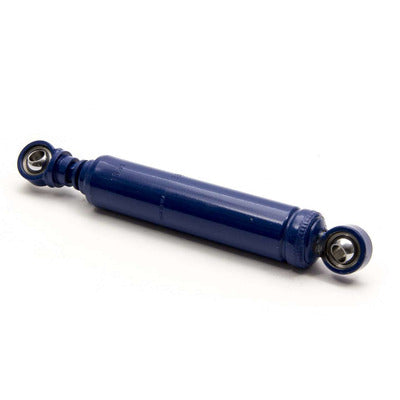

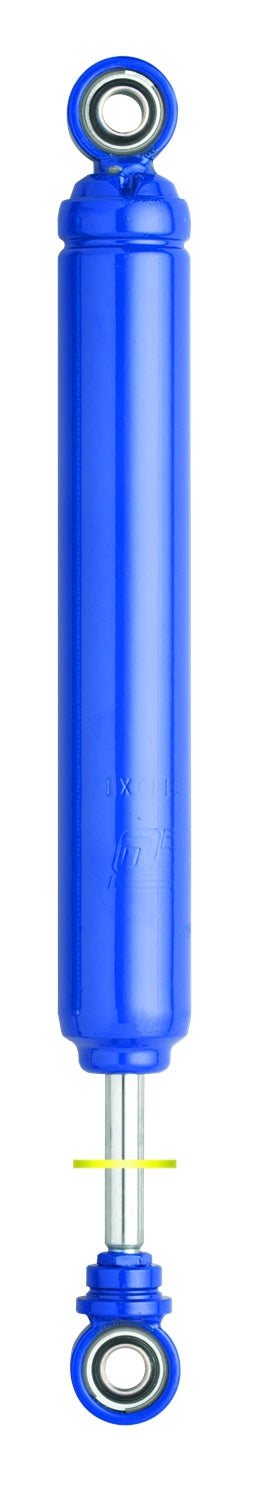

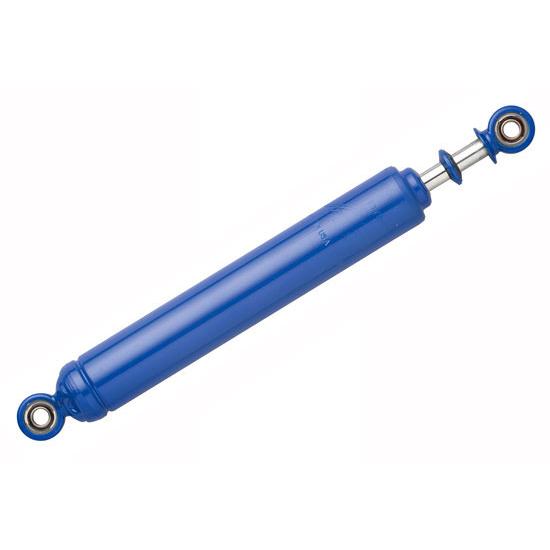

AFCO steel small body shock. Ideal for dwarf cars and micro-sprint cars. Can be used as coil-over or without coils. 5" stroke, 1 valve on compression and rebound. Uses coil kit number 20125SB or 20125SB-7 for longer sleeve. 10.25" compressed and 15.25" extended.

  • Welded eye ring for superior strength
  • Replaceable bearing for long life
  • 5/8" shaft prevents flexing
  • A wide selection of split valves and standard valves are available to fit a variety of applications and needs
  • Can be mounted in any position to save unsprung weight
  • Durable gloss powder coat finish for long life
  • Compressed Length: 12.75"
  • Extended Length: 19.25"
  • 1.64" O.D. Body
  • Comp. Length: 12.75"
  • Extended Length: 19.25"
  • Comp/Rebound: 5/3
  • MPN: 1575

Shock Type: Twin Tube
Shock Adjustability: Non-Adjustable
Shock Body Material: Steel
Shock Body Type: Smooth
Shock Body Size: Small Body
Shock Stroke Range: 7.00" to 7.99"
Compression Valving: 5
Rebound Valving: 3
Shock Stroke: 7
Upper Shock Mount: 1/2" Spherical Rod End
Lower Shock Mount: 1/2" Spherical Rod End
Extended Length Range: 19.00" to 19.99"
Extended Length: 19.25"
Compressed Length Range: 12.00" to 12.99"
Compressed Length: 12.75"
Schrader Valve: No
Finish: Painted
Coil-Over Compatible: Yes
Body Diameter: 1.65"
Valve Positions: 5 compression - 3 rebound
Rebuildable: No
Bushing Material: Steel
MFG. Part #: 1575-3
Sold in Quantity: Each
Shock Eyelet Width: 0.625"
Bolt Hole Circle: .500"
Hardware Included: No
