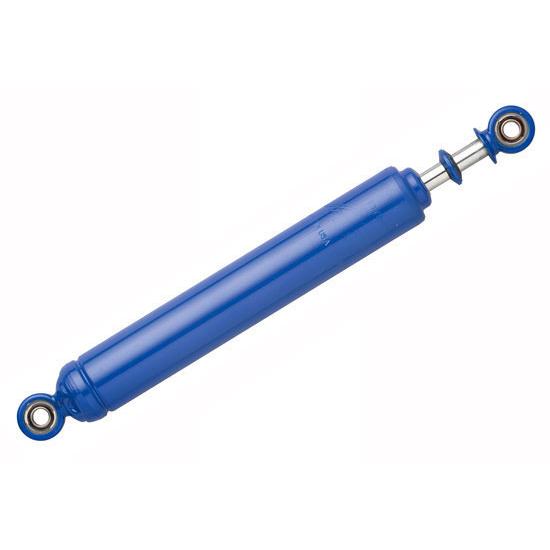

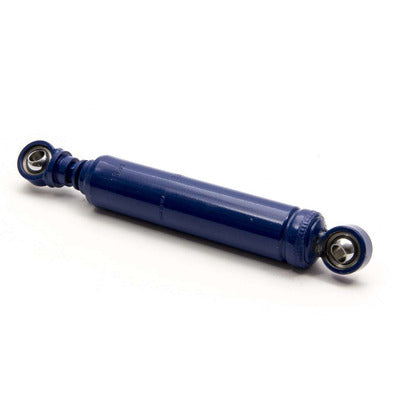

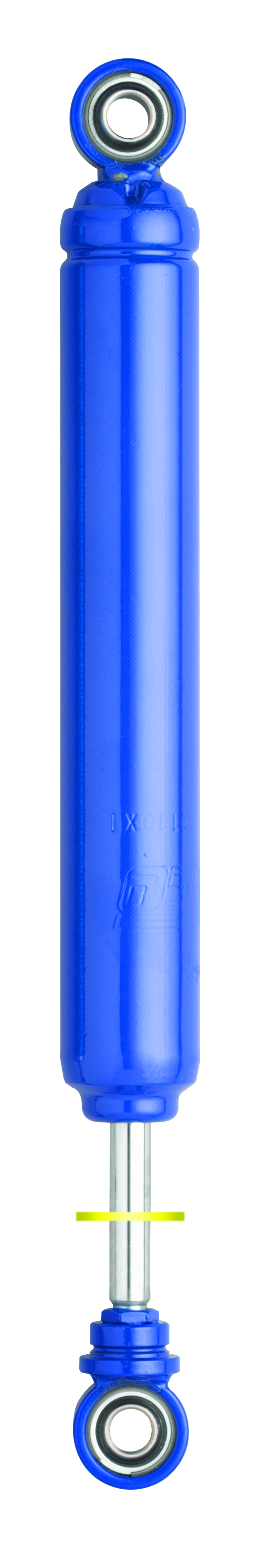

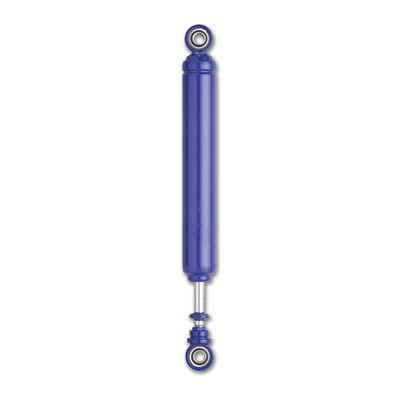

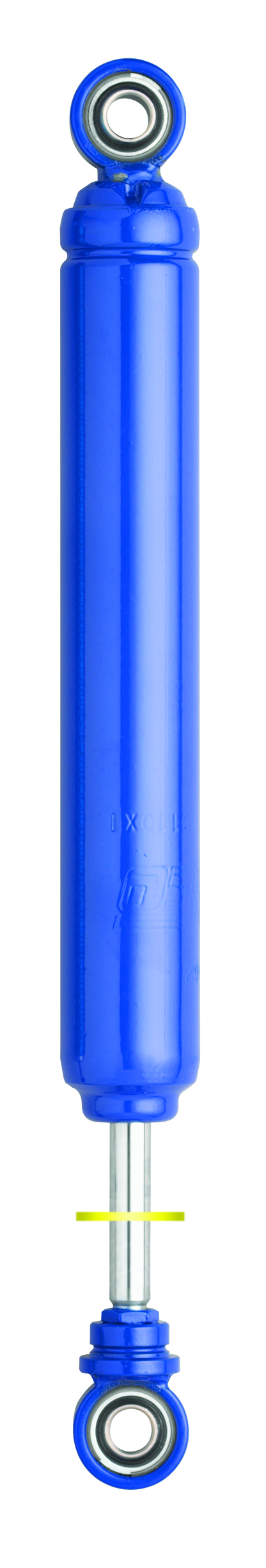

AFCO steel small body shock. Ideal for dwarf cars and micro-sprint cars. Can be used as coil-over or without coils. 5" stroke, 1 valve on compression and rebound. Uses coil kit number 20125SB or 20125SB-7 for longer sleeve. 10.25" compressed and 15.25" extended.
- Welded eye ring for superior strength
- Replaceable bearing for long life
- 5/8" shaft prevents flexing
- A wide selection of split valves and standard valves are available to fit a variety of applications and needs
- Can be mounted in any position to save unsprung weight
- Durable gloss powder coat finish for long life
- Compressed Length: 10.25"
- Extended Length: 15.25"
- 1.64" O.D. Body
- Comp. Length: 10.25"
- Extended Length: 15.25"
- Comp/Rebound: 4/4
- MPN: 1554
Specifications
| Shock Type: |
Twin Tube |
| Shock Adjustability: |
Non-Adjustable |
| Shock Body Material: |
Steel |
| Shock Body Type: |
Smooth |
| Shock Body Size: |
Small Body |
| Shock Stroke Range: |
5.00" to 5.99" |
| Compression Valving: |
4 |
| Rebound Valving: |
4 |
| Shock Stroke: |
5 |
| Upper Shock Mount: |
1/2" Spherical Rod End |
| Lower Shock Mount: |
1/2" Spherical Rod End |
| Extended Length Range: |
15.00" to 15.99" |
| Extended Length: |
15.25" |
| Compressed Length Range: |
10.00" to 10.99" |
| Compressed Length: |
10.25" |
| Schrader Valve: |
No |
| Finish: |
Painted |
| Coil-Over Compatible: |
Yes |
| Body Diameter: |
1.65" |
| Valve Positions: |
4 compression - 4 rebound |
| Rebuildable: |
No |
| Bushing Material: |
Steel |
| MFG. Part #: |
1554 |
| Sold in Quantity: |
Each |
| Shock Eyelet Width: |
0.625" |
| Bolt Hole Circle: |
.500" |
| Hardware Included: |
No |
