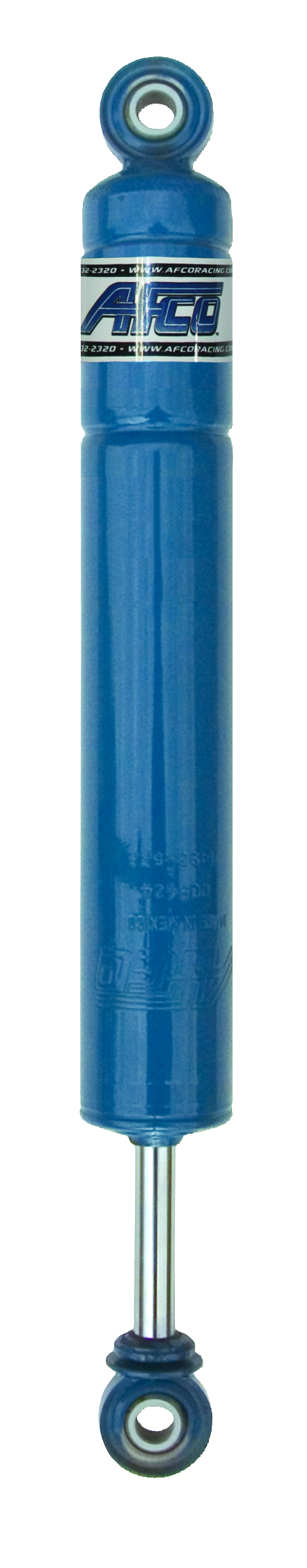

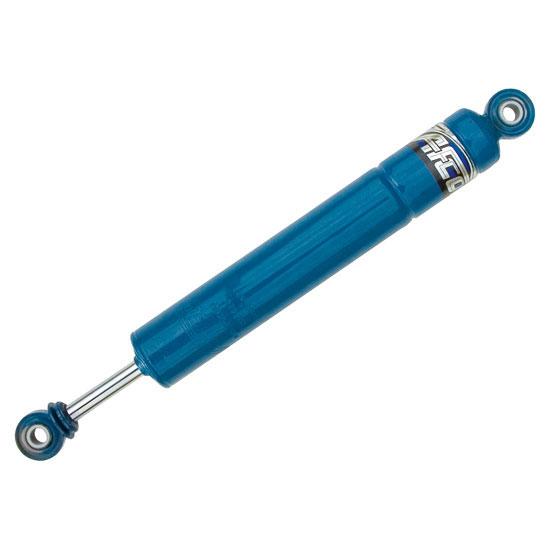

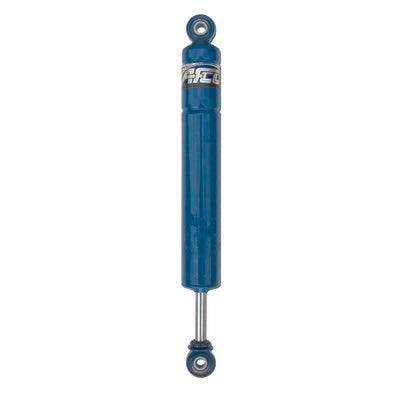

• AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 9 In 5-3 Valve 1495-3
1 4

AFCO Racing Products

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 9 In 5-3 Valve 1495-3

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 9 In 5-3 Valve 1495-3

$119.99 USD
$119.99 USD
Sale Sold out
Shipping Policy

AFC1495-3

Inventory: 3 in stock

AFCO fixed bearing 14 Series sealed body coil-over shocks. Our most economical coil-over shock grooved for coil kit, steel body, twin tube design. 7" stroke, 3 valve on compression and rebound. Coil kit 20125A for 2 5/8" coils or 20125A-7K for 5" OD springs.

  • Sealed body
  • Twin-Tube design
  • Can be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 14.75"
  • Extended Length: 23.50"
  • Stroke: 9"
  • Compressed Length: 14.75"
  • Extended Length: 23.50"
  • Comp. / Rebound: 5/3
  • MPN: 1495-3



Shock Type: Twin Tube
Shock Adjustability: Non-Adjustable
Shock Body Material: Steel
Shock Body Type: Smooth
Shock Body Size: Small Body
Shock Stroke Range: 9.00" to 9.99"
Compression Valving: 5
Rebound Valving: 3
Shock Stroke: 9
Upper Shock Mount: 1/2" Spherical Rod End
Lower Shock Mount: 1/2" Spherical Rod End
Extended Length Range: 23.00" to 23.99"
Extended Length: 23.5"
Compressed Length Range: 14.00" to 14.99"
Compressed Length: 14.75"
Schrader Valve: No
Finish: Painted
Coil-Over Compatible: Yes
Body Diameter: 2.00"
Valve Positions: 5 compression - 3 rebound
Rebuildable: No
MFG. Part #: 14953
Sold in Quantity: Each
Shock Eyelet Width: 0.625"
Bolt Hole Circle: .500"
Hardware Included: No
