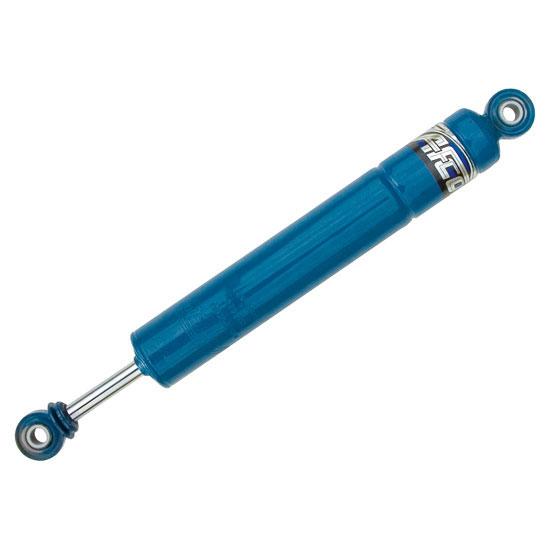

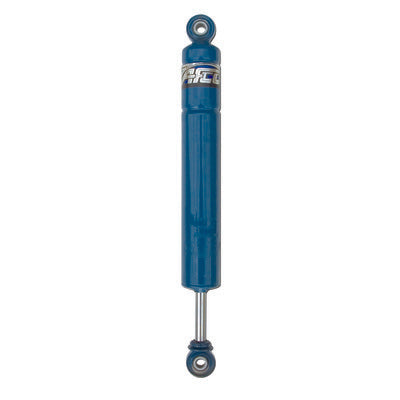

AFCO fixed bearing 14 Series sealed body coil-over shocks. Our most economical coil-over shock grooved for coil kit, steel body, twin tube design. 7" stroke, 3 valve on compression and rebound. Coil kit 20125A for 2 5/8" coils or 20125A-7K for 5" OD springs.
- Sealed bodyTwin-Tube designCan be used with or without coilovers
- Can be mounted upside-down for reduced unsprung weight
- Compressed Length: 12.75"
- Extended Length: 19.50"
- Stroke: 7"
- Comp. Length: 12.75"
- Extended Length: 19.50"
- Comp/Rebound: 6/6
- MPN: 1476
Specifications
| Shock Type: |
Twin Tube |
| Shock Adjustability: |
Non-Adjustable |
| Shock Body Material: |
Steel |
| Shock Body Type: |
Smooth |
| Shock Body Size: |
Small Body |
| Shock Stroke Range: |
7.00" to 7.99" |
| Compression Valving: |
6 |
| Rebound Valving: |
6 |
| Shock Stroke: |
7 |
| Upper Shock Mount: |
1/2" Spherical Rod End |
| Lower Shock Mount: |
1/2" Spherical Rod End |
| Extended Length Range: |
19.00" to 19.99" |
| Extended Length: |
19.5" |
| Compressed Length Range: |
12.00" to 12.99" |
| Compressed Length: |
12.75" |
| Schrader Valve: |
No |
| Finish: |
Painted |
| Coil-Over Compatible: |
Yes |
| Body Diameter: |
2.00" |
| Valve Positions: |
6 compression - 6 rebound |
| Rebuildable: |
No |
| MFG. Part #: |
1476 |
| Sold in Quantity: |
Each |
| Shock Eyelet Width: |
0.625" |
| Bolt Hole Circle: |
.500" |
| Hardware Included: |
No |
