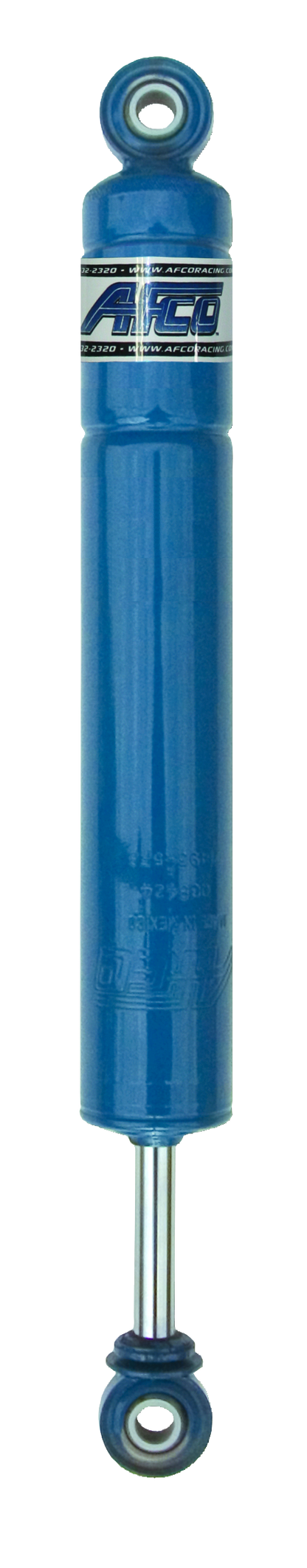

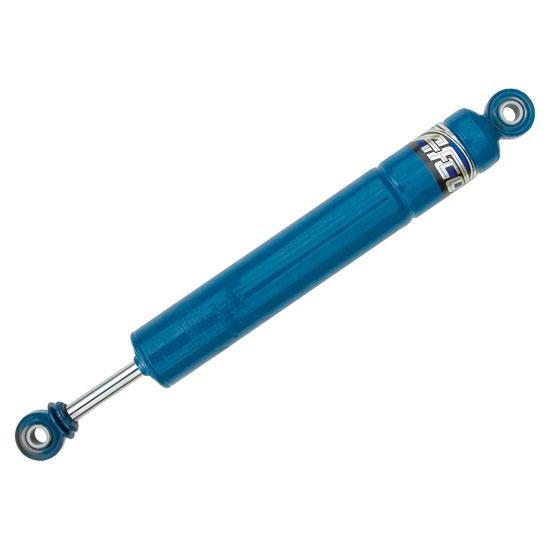

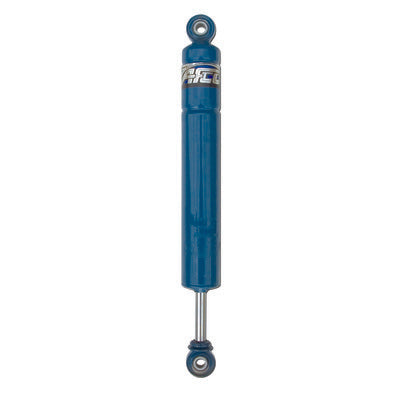

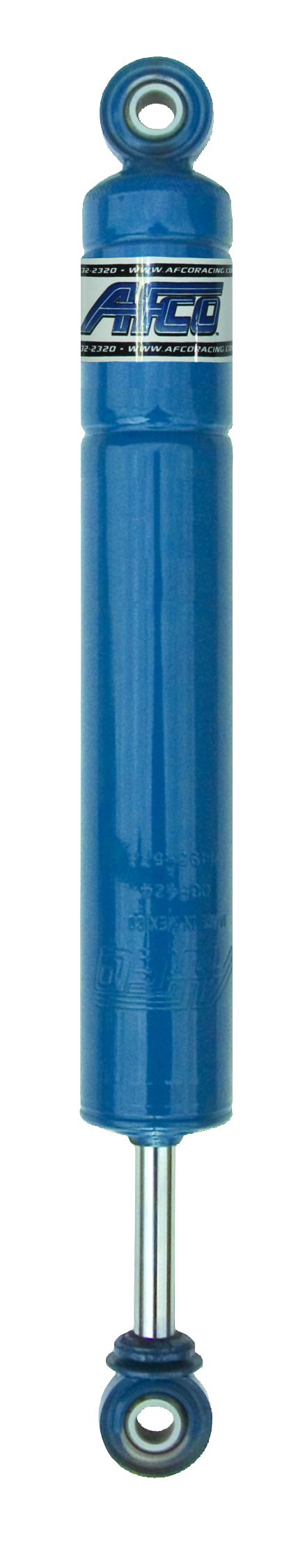

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 4 Valve 1474
AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 4 Valve 1474
AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 4 Valve 1474
AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 4 Valve 1474

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 4 Valve 1474

AFC1474 (15 in stock)

AFCO Racing Products

Regular price $121.99 Sale

AFCO fixed bearing 14 Series sealed body coil-over shocks. Our most economical coil-over shock grooved for coil kit, steel body, twin tube design. 7" stroke, 3 valve on compression and rebound. Coil kit 20125A for 2 5/8" coils or 20125A-7K for 5" OD springs.

  • Sealed bodyTwin-Tube designCan be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"
  • Comp. Length: 12.75"
  • Extended Length: 19.50"
  • Comp/Rebound: 4/6

Specifications

Shock Type: Twin Tube
Shock Adjustability: Non-Adjustable
Shock Body Material: Steel
Shock Body Type: Smooth
Shock Body Size: Small Body
Shock Stroke Range: 7.00" to 7.99"
Compression Valving: 4
Rebound Valving: 6
Shock Stroke: 7
Upper Shock Mount: 1/2" Spherical Rod End
Lower Shock Mount: 1/2" Spherical Rod End
Extended Length Range: 19.00" to 19.99"
Extended Length: 19.5"
Compressed Length Range: 12.00" to 12.99"
Compressed Length: 12.75"
Schrader Valve: No
Finish: Painted
Coil-Over Compatible: Yes
Body Diameter: 2.00"
Valve Positions: 4 compression - 6 rebound
Rebuildable: No
MFG. Part #: 14746
Sold in Quantity: Each
Shock Eyelet Width: 0.625"
Bolt Hole Circle: .500"
Hardware Included: No
