AFCO Racing Products

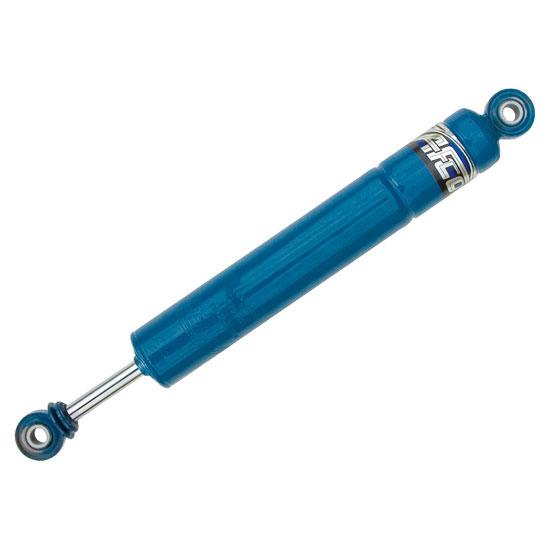

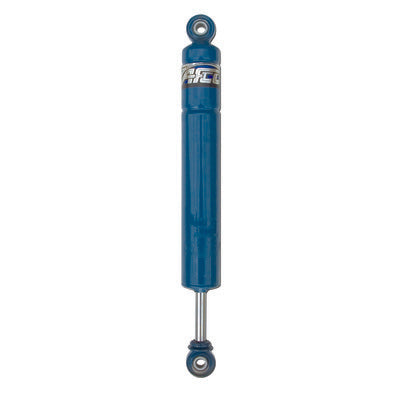

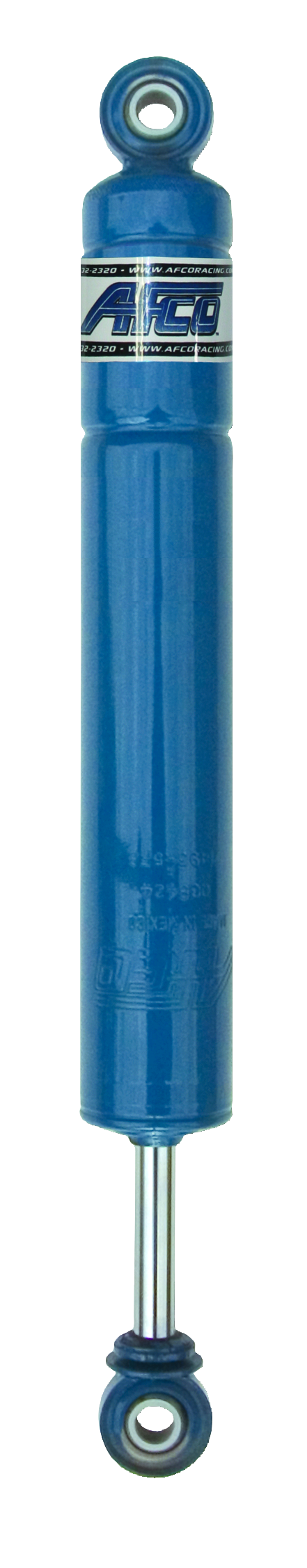

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3-5 Valve 1473-5
AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3-5 Valve 1473-5
SKU:AFC1473-5
Inventory: 6 in stock
Couldn't load pickup availability
AFCO fixed bearing 14 Series sealed body coil-over shocks. Our most economical coil-over shock grooved for coil kit, steel body, twin tube design. 7" stroke, 3 valve on compression and rebound. Coil kit 20125A for 2 5/8" coils or 20125A-7K for 5" OD springs.
Sealed bodyTwin-Tube designCan be used with or without coilovers
Can be mounted upside-down for reduced unsprung weight
Compressed Length: 12.75"
Extended Length: 19.50"
Stroke: 7"
Comp. Length: 12.75"
Extended Length: 19.50"
Comp/Rebound: 3/5
|
Shock Type: |
Twin Tube |
| Shock Adjustability: | Non-Adjustable |
|
Shock Body Material: |
Steel |
| Shock Body Type: | Smooth |
|
Shock Body Size: |
Small Body |
| Shock Stroke Range: | 7.00" to 7.99" |
|
Compression Valving: |
3 |
| Rebound Valving: | 5 |
|
Shock Stroke: |
7 |
| Upper Shock Mount: | 1/2" Spherical Rod End |
|
Lower Shock Mount: |
1/2" Spherical Rod End |
| Extended Length Range: | 19.00" to 19.99" |
|
Extended Length: |
19.5" |
| Compressed Length Range: | 12.00" to 12.99" |
|
Compressed Length: |
12.75" |
| Schrader Valve: | No |
|
Finish: |
Painted |
| Coil-Over Compatible: | Yes |
|
Body Diameter: |
2.00" |
| Valve Positions: | 3 compression - 5 rebound |
|
Rebuildable: |
No |
| MFG. Part #: | 14735 |
|
Sold in Quantity: |
Each |
| Shock Eyelet Width: | 0.625" |
|
Bolt Hole Circle: |
.500" |
| Hardware Included: | No |
