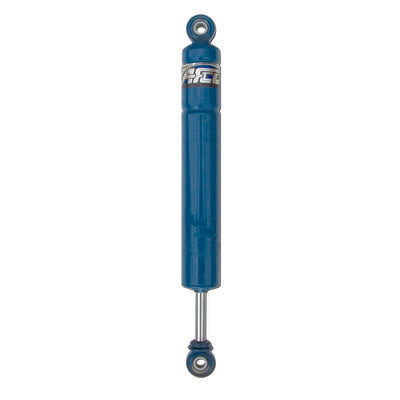

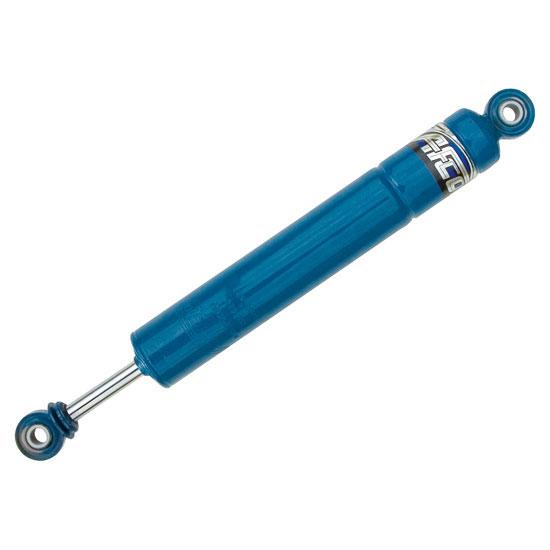

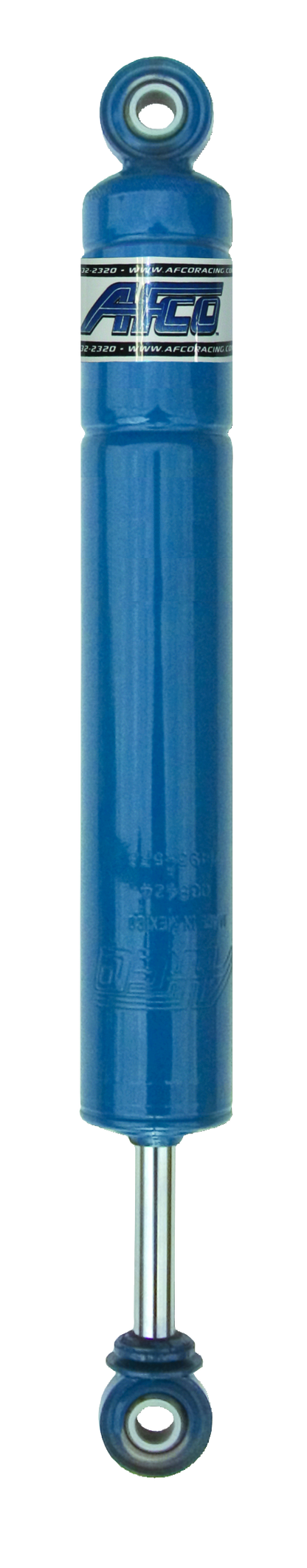

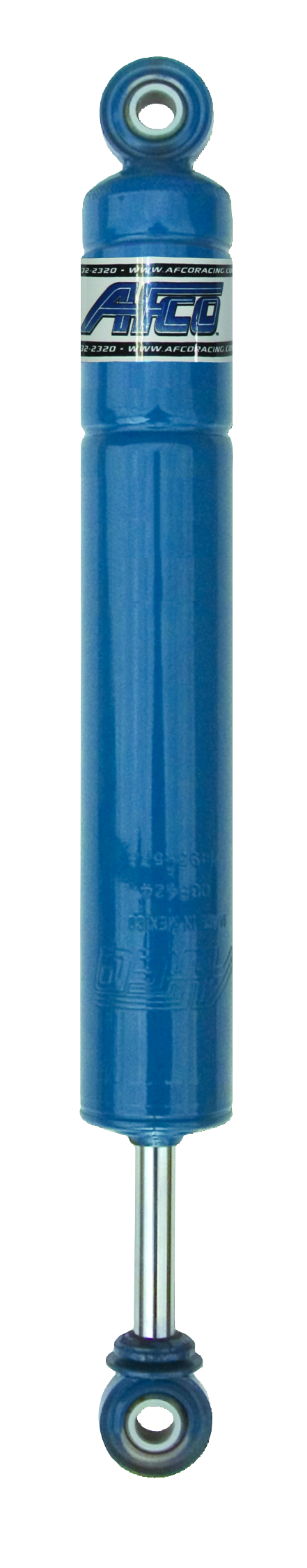

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473

AFCO Racing Steel Shock Twin Tube 14 Series Fixed Bearing Coil Over 7 In 3 Valve 1473

$119.99 USD
$119.99 USD
Sale Sold out
Shipping Policy

AFC1473

Inventory: 1 in stock

AFCO fixed bearing 14 Series sealed body coil-over shocks. Our most economical coil-over shock grooved for coil kit, steel body, twin tube design. 7" stroke, 3 valve on compression and rebound. Coil kit 20125A for 2 5/8" coils or 20125A-7K for 5" OD springs.

  • Sealed bodyTwin-Tube designCan be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"
  • Comp. Length: 12.75"
  • Extended Length: 19.50"
  • Comp/Rebound: 3/5

Shock Type:

 Twin Tube
Shock Adjustability: Non-Adjustable

Shock Body Material:

 Steel
Shock Body Type: Smooth

Shock Body Size:

 Small Body
Shock Stroke Range: 7.00" to 7.99"

Compression Valving:

 3
Rebound Valving: 5

Shock Stroke:

 7
Upper Shock Mount: 1/2" Spherical Rod End

Lower Shock Mount:

 1/2" Spherical Rod End
Extended Length Range: 19.00" to 19.99"

Extended Length:

 19.5"
Compressed Length Range: 12.00" to 12.99"

Compressed Length:

 12.75"
Schrader Valve: No

Finish:

 Painted
Coil-Over Compatible: Yes

Body Diameter:

 2.00"
Valve Positions: 3 compression - 5 rebound

Rebuildable:

 No
MFG. Part #: 14735

Sold in Quantity:

 Each
Shock Eyelet Width: 0.625"

Bolt Hole Circle:

 .500"
Hardware Included: No
