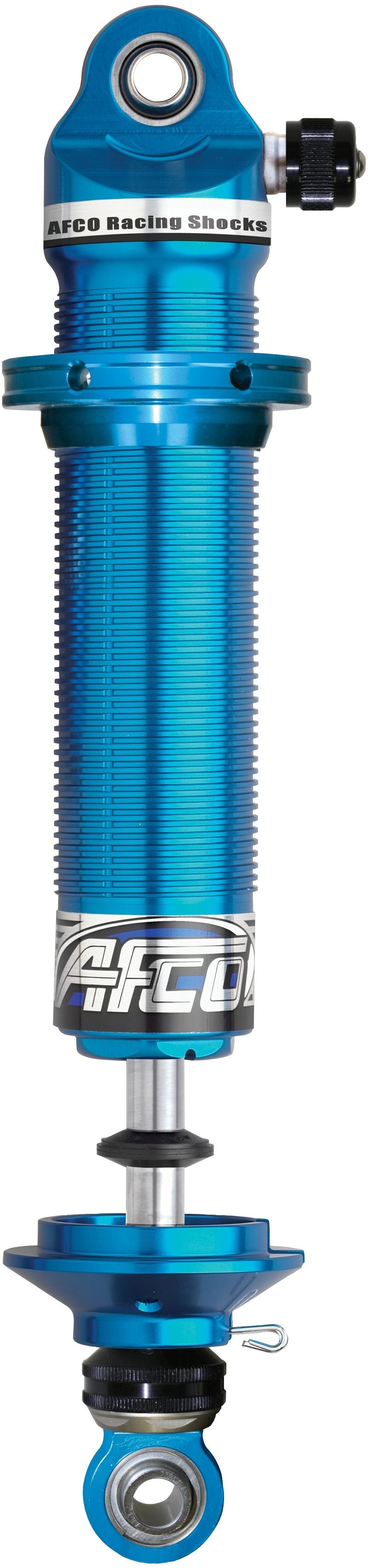

AFCO Racing Aluminum Shock Twin Tube Adj Drag Big Gun 3870BGX
AFC3870BGX (23 in stock)AFCO Racing Products
Regular price
$524.99
The Big Gun X Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass. If you have 1,000 - 1,500 horsepower and are on a drag radial tire, this is the valving package you need to complement your race program.

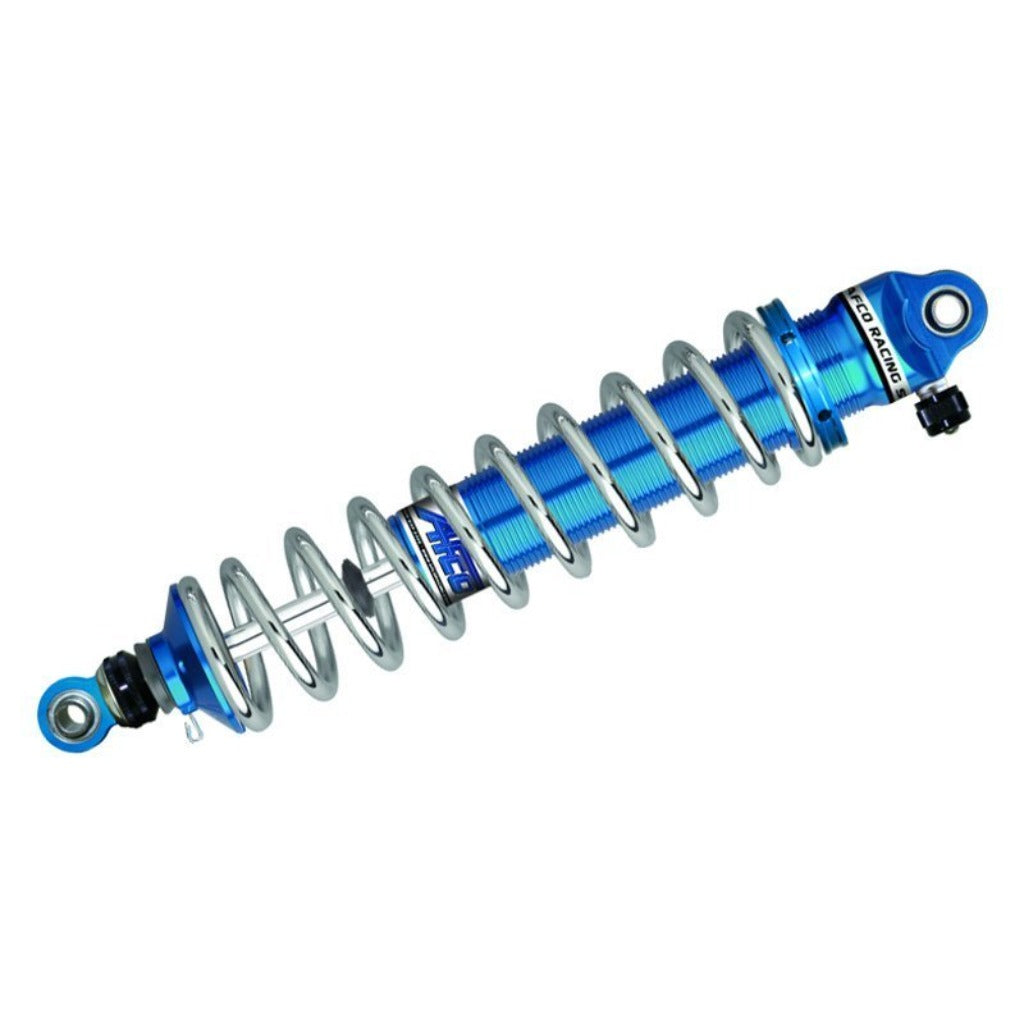

Sold individually with coilover kit. Springs not included.
- Double Adjustable - broadest range of adjustment in industry
- Big Gun X Valving - specifically valved for high horsepower applications: S/O, NPS, Ultra Street, and Quick 8
- Great for BIG or SMALL tire door slammers
- Rebuildable and Revalveable
- Body Mount: 1/2" I.D. Bearing 1" wide
- Shaft Mount: 1/2" I.D. Bearing 1" wide
- Springs not included
- MPN: 3870BGX
Specifications
| Brand |
AFCO
|
|
Part Number
|
3870BGX
|
|
Product Line
|
Big Gun X
|
|
Internal Design
|
Twintube
|
|
Gas/Hydraulic
|
Hydraulic
|
|
Threaded Body
|
Yes
|
|
Recommended Spring Length
|
14 in
|
|
Rebuildable
|
Yes
|
|
Revalveable
|
Yes
|
|
Stroke Length
|
7 in
|
|
Compressed Length
|
14 in
|
|
Extended Length
|
20.92 in
|
|
Adjustable
|
Double
|
|
Adjustment Method Compression
|
Knob
|
|
Adjustment Method Rebound
|
Twist
|
|
Compression Adjustable
|
Yes
|
|
Rebound Adjustable
|
Yes
|
|
Front Shock Upper Mount
|
Bearing Eyelet
|
|
Front Shock Lower Mount
|
Bearing Eyelet
|
|
Bearing Size
|
1/2 in
|
|
Shock Boot / Dust Cover Included
|
No
|
|
Suggested Ride Height Low
|
15.50 in
|
|
Suggested Ride Height High
|
18.50 in
|
|
Universal
|
Yes
|
|
Hardware Included
|
Yes
|
|
Shock Body Material
|
Aluminum
|
|
Shock Body Color
|
Blue
|
|
Shock Body Finish
|
Anodized
|
|
Quantity
|
Each
|
