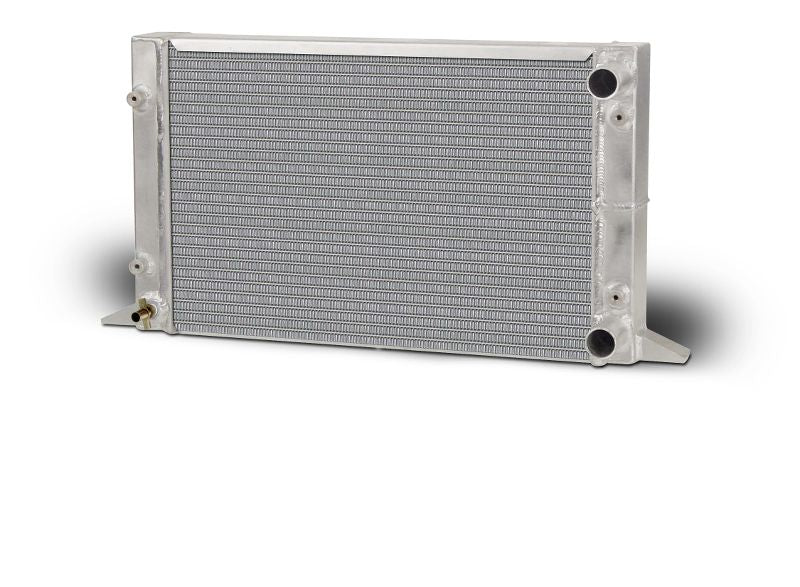

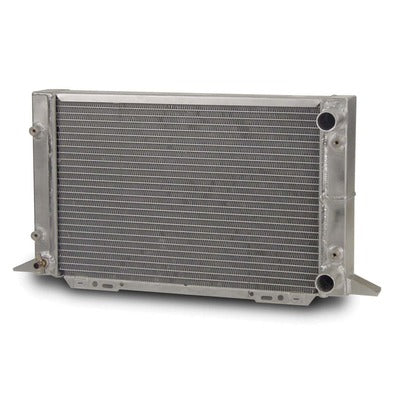

AFCO Racing Scirocco-style drag racing radiators have double-pass construction and are available for Ford, Chrysler, or GM applications. The double row, all-aluminum furnace-brazed design provides maximum cooling protection for the most demanding drivers.
- Double-pass 2-row by 1 in. wide tube construction for maximum cooling in a compact, lightweight package
- Sturdy TIG-welded mounts and mounting bungs
- Top fin covers are built-in
- Brass drain cock with stainless hardware included
- 100 percent TIG-welded (no epoxy)
- Use with AFCO fan and shroud assembly (sold separately) for maximum efficiency
- MPN: 80107N
Specifications
| Brand |
AFCO Racing |
| Manufacturer's Part Number |
80107N |
| Part Type |
Radiators |
| Product Line |
AFCO Racing Scirocco-Style Drag Racing Radiators |
| Radiator Material |
Aluminum |
| Radiator Style |
Crossflow |
| Overall Width (in) |
21.500 in. |
| Overall Height (in) |
13.250 in. |
| Overall Thickness (in) |
3.000 in. |
| Inlet Location |
Upper passenger side |
| Outlet Location |
Lower passenger side |
| Radiator Finish |
Natural |
| Core Width (in) |
18.000 in. |
| Core Height (in) |
12.500 in. |
| Core Thickness (in) |
2.500 in. |
| Row Quantity |
2 |
| Transmission Cooler |
No |
| Trans Cooler Adapter Fittings Included |
No |
| Inlet Size |
1 1/4 in. |
| Outlet Size |
1 1/4 in. |
| Tube Size |
1 in. |
| Fan Included |
No |
| Radiator Cap Included |
No |
| Quantity |
Sold individually. |
| Notes |
No provisions for filler neck. |
