AFCO Racing Aluminum Radiator Sirocco Left Hand Double Pass 1-1/2 Inlet 1-3/4 Outlet 80105N

AFCO Racing Aluminum Radiator Sirocco Left Hand Double Pass 1-1/2 Inlet 1-3/4 Outlet 80105N

$455.99 USD
$455.99 USD
Sale Sold out
Shipping Policy

AFC80105N

In stock

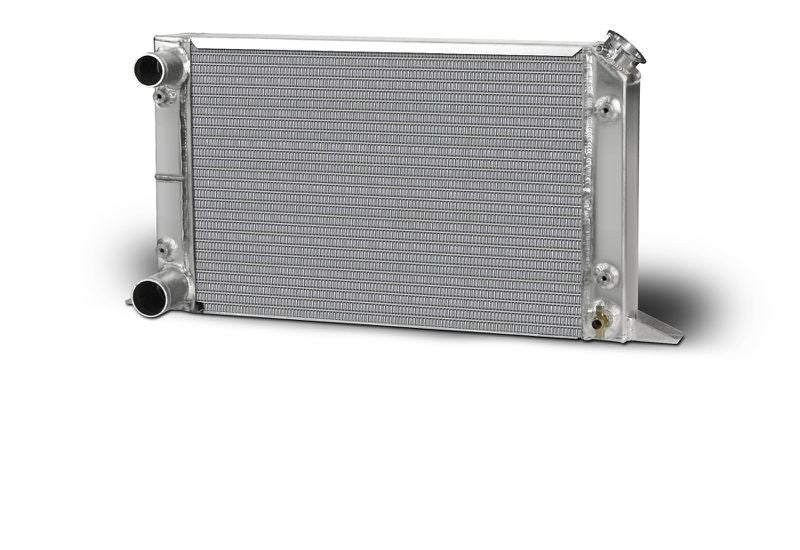

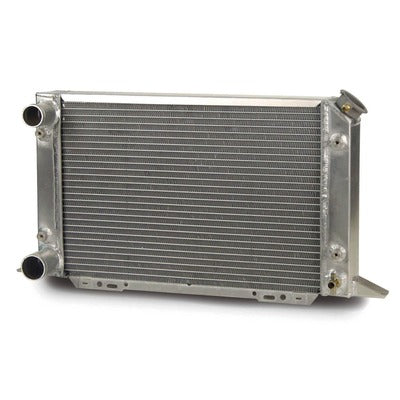

AFCO Racing Scirocco-style drag racing radiators have double-pass construction and are available for Ford, Chrysler, or GM applications. The double row, all-aluminum furnace-brazed design provides maximum cooling protection for the most demanding drivers.

  • Double-pass 2-row by 1 in. wide tube construction for maximum cooling in a compact, lightweight package
  • Sturdy TIG-welded mounts and mounting bungs
  • Top fin covers are built-in
  • Brass drain cock with stainless hardware included
  • 100 percent TIG-welded (no epoxy)
  • Use with AFCO fan and shroud assembly (sold separately) for maximum efficiency
  • MPN: 80105N

Brand AFCO Racing
Part Number 80105N
Part Type Radiators
Product Line AFCO Racing Scirocco-Style Drag Racing Radiators
Radiator Material Aluminum
Radiator Style Crossflow
Overall Width 21.500 in.
Overall Height 13.250 in.
Overall Thickness  3.0 in.
Inlet Location Upper driver side
Outlet Location Lower driver side
Radiator Finish Natural
Core Width (in) 18.000 in.
Core Height (in) 12.500 in.
Core Thickness (in) 2.500 in.
Row Quantity 2
Transmission Cooler No
Trans Cooler Adapter Fittings Included No
Inlet Size 1 1/2 in.
Outlet Size 1 3/4 in.
Tube Size 1 in.
Fan Included No
Radiator Cap Included No
Quantity Sold individually.
Notes Filler neck is on the passenger side.
Tip Cut Slant
Tip Edge Style Non-rolled edge, single-wall
Tip Material 304 stainless steel
Tip Finish Polished
Quantity Sold as a kit
Notes Will not fit with independent rear suspension (IRS). Depending on vehicle configuration, some modifications may be required. See installation instructions for details, if applicable.
