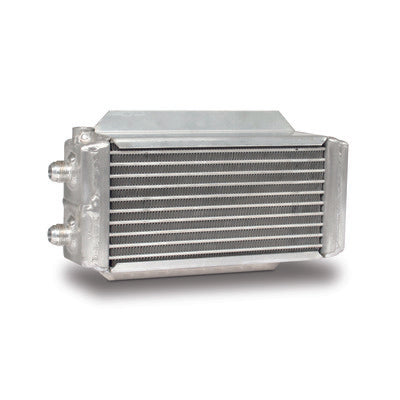

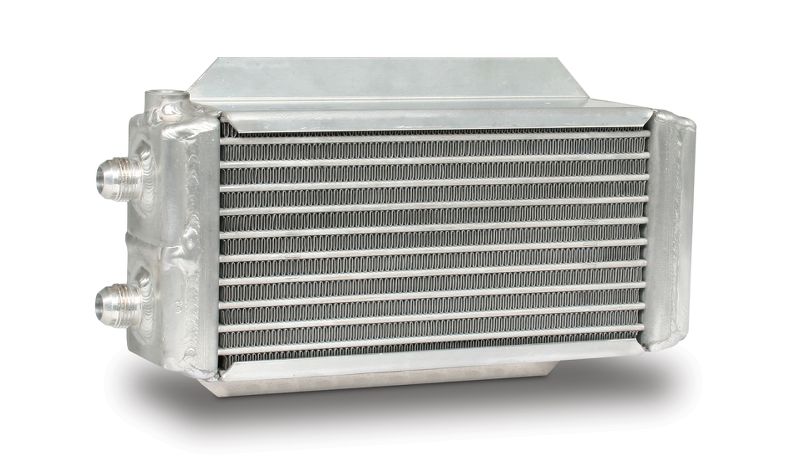

AFCO deck mount oil cooler double pass design optimum fin count ratio with oil tubular and louvered fins for maximum heat displacement. Has a 1 quart capacity and includes a 1" FPT oil temp sending bung including -12 AN inlet and outlet.
Specifications
| Brand |
AFCO Racing |
| Manufacturer's Part Number |
80268-12 |
| Part Type |
Fluid Coolers |
| Product Line |
AFCO Racing Deck-Mount Oil Coolers |
| Overall Height (in) |
14.500 in. |
| Overall Width (in) |
6.500 in. |
| Overall Thickness (in) |
3.000 in. |
| Cooler Construction |
Reservoir |
| Cooler Material |
Aluminum |
| Inlet Size |
-12 AN |
| Inlet Attachment |
Male threads |
| Outlet Size |
-12 AN |
| Outlet Attachment |
Male threads |
| Fan Included |
No |
| Core Height (in) |
11.500 in. |
| Core Width (in) |
6.250 in. |
| Core Thickness (in) |
3.000 in. |
| Cooler Finish |
Natural |
| Quantity |
Sold individually. |
| Notes |
Works with petroleum based oils. Cooler has 1/2 in. NPT female port for temperature sender. |
