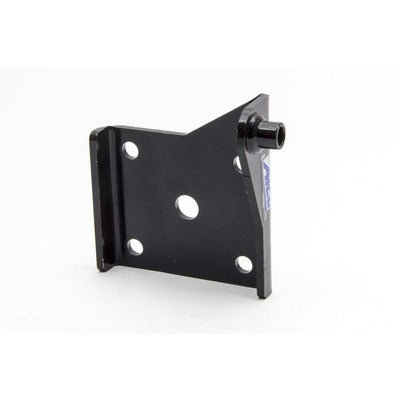

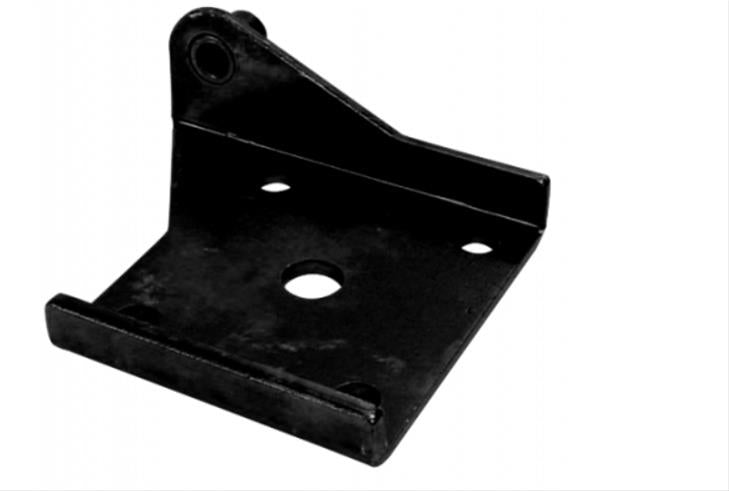

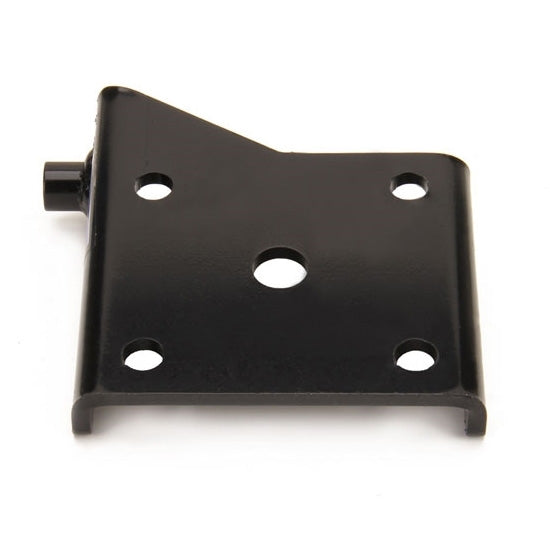

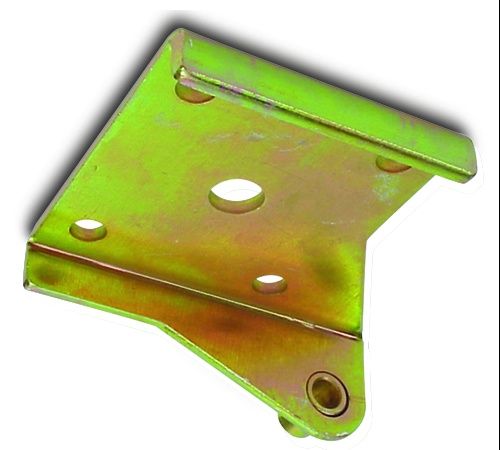

AFCO Racing lower leaf spring plates are designed to mount your shock to the bottom of the leaf spring in the correct position. They are made of steel and are available for driver or passenger side lower mounts. Welding is required for installation.
- Mounting square center to center measurements are 3.00" x 3.50"
- Mounting holes are .50" I.D.
- Center hole is .75" I.D. and centered 2.75" from the turndown edges of the plate
- Plate itself is .25" thick
- From the flat of the plate to the outer lip of the shock mount is 2.25" (1.50" to the center of shock mount hole)
- MPN: 20249
Specifications
| Brand |
AFCO Racing |
| Manufacturer's Part Number |
20249 |
| Part Type |
Shock Mounts |
| Product Line |
AFCO Racing Lower Leaf Spring Plates |
| Shock Mount Type |
Standard |
| Shock Mount Location |
Left rear lower |
| Shock Quantity Per Mount |
1 |
| Adjustable Mounting Bracket |
No |
| Shock Mounting Bracket Material |
Steel |
| Shock Mounting Bracket Finish |
Black |
| Welding Required |
Yes |
| Quantity |
Sold individually. |
