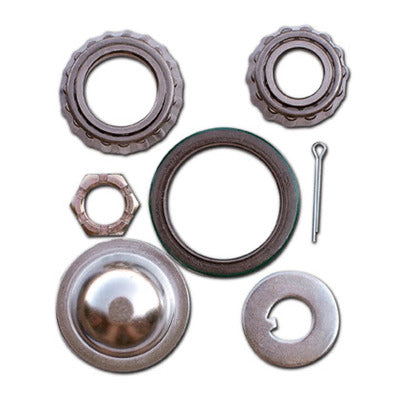

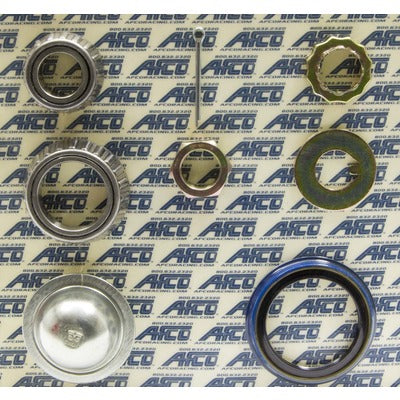

The master installation kit allows you to install your AFCO hybrid rotor on any Ford Pinto spindle. The complete kit comes with inner and outer bearings, hub seal, spindle nut with lock, and dust cap. The kit fits AFCO 9850-6505 rotors.
Specifications
| Brand |
AFCO |
| Part Number |
9851-8551 |
|
Hub Style
|
Ford Hybrid
|
|
Bearing Style
|
Tapered
|
|
Inner / Outer Included
|
Inner / Outer
|
|
Inner Bearing A Quantity
|
1
|
|
Inner Bearing A Bore Diameter
|
1.36 in
|
|
Inner Bearing A Race Included
|
No
|
|
Inner Bearing A Thickness
|
0.7 in
|
|
Outer Bearing A Quantity
|
1
|
|
Outer Bearing A Bore Diameter
|
0.83 in
|
|
Outer Bearing A Race Included
|
No
|
|
Outer Bearing A Thickness
|
0.7 in
|
|
Seal Included
|
Yes
|
|
Seal A Inside Diameter
|
1.92 in
|
|
Seal A Outside Diameter
|
2.515 in
|
|
Dust Cap Included
|
Yes
|
|
Dust Cap Quantity
|
1
|
|
Dust Cap Material
|
Steel
|
|
Dust Cap Color
|
Zinc
|
|
Dust Cap Finish
|
Oxide
|
|
Spindle Nut Included
|
Yes
|
|
Spindle Washer Included
|
Yes
|
|
Cotter Pin Included
|
Yes
|
|
Material
|
Steel
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
