AFCO Racing Aluminum 4 In Stroke Coil-Over Double Adjustable 1967-69 Camaro Firebird 3840F

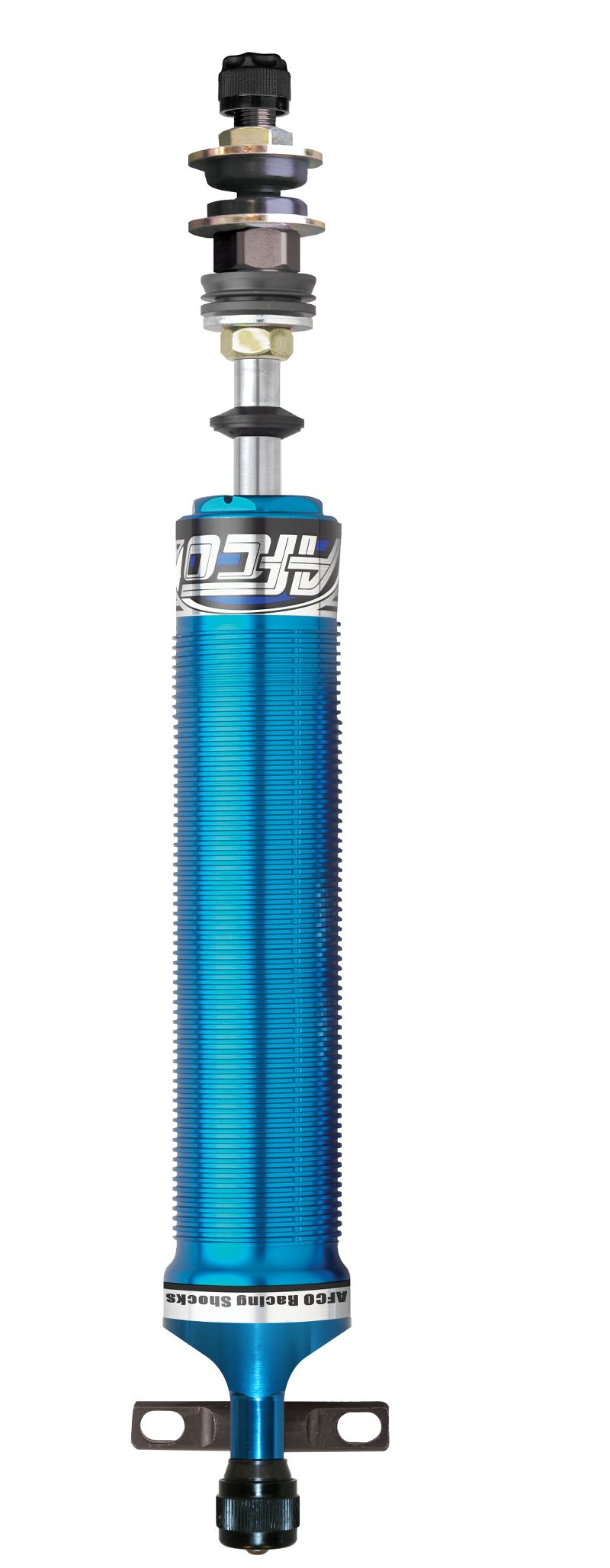

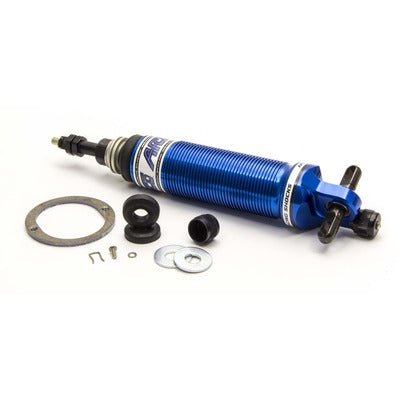

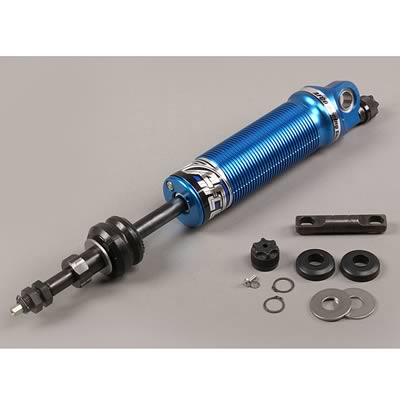

AFCO Racing Aluminum 4 In Stroke Coil-Over Double Adjustable 1967-69 Camaro Firebird 3840F
SKU:AFC3840F
Inventory: 6 in stock
Couldn't load pickup availability
This Eliminator Double Adjustable drag shock features independent compression and rebound valving ranges for street and strip applications. Popular stock position front shock on many 1955-96 GM mid/full-sized cars and trucks. Including '55-'57 Chevy, '67-'69 Camaro, '63-'82 Corvette, '68-'88 Malibu/Chevelle/Monte Carlo, '82-'96 S10. 10.25" comp x 14.15" ext. length. May run as a coil-over setup with #20135 hardware kit and 8" tall spring sold separately.
- Body Side: Tie Bar 2.375"
- Shaft Mount: Stud 9-16
| Brand | AFCO Racing |
| Part Number | 3840F / BNC |
| Part Type | Coilover Shocks and Struts |
| Product Line | AFCO Racing Eliminator BNC Valving Shocks |
| Coilover Shock Type | Double-adjustable |
| Shock Body Material | Aluminum |
| Shock Body Finish | Blue anodized |
| Adjustable Valving | Yes |
| Number of Valving Selections | 62 |
| Extended Length (in) | 14.250 in. |
| Collapsed Length (in) | 10.250 in. |
| Upper Mount | Tie bar |
| Lower Mount | Stud |
| Internal Design | Twin-tube |
| Gas Charged | No |
| Body Diameter (in) | 2.150 in. |
| Coilover Springs Included | No |
| Recommended Spring Diameter (in) | 2.625 in. |
| Recommended Spring Length (in) | 8 in. |
| Adjustable Mounting Bracket Included | No |
| Hardware Included | Yes |
| Quantity | Sold individually. |
| Notes | Check extended and compressed dimensions. |
1979-92 Dodge Truck
1982-96 S10/Blazer
1968-87 El Camino (check extended & compression dimensions)
1964-67 El Camino
1970-81 Camaro
1967-69 Camaro (check extended & compression dimensions)
1968-83 Chevelle/Malibu (check extended & compression dimensions)
1964-67 Chevelle/Malibu
1973-79 Chevy II/Nova (check extended & compression dimensions)
1968-72 Chevy II/Nova (check extended & compression dimensions)
1963-82 Corvette
1965-86 GM Full-Size Car
1955-57 GM Full-Size Car
1970-88 Monte Carlo (check extended & compression dimensions)
1975-80 Monza (check extended & compression dimensions)
1972-77 Vega (check extended & compression dimensions)
