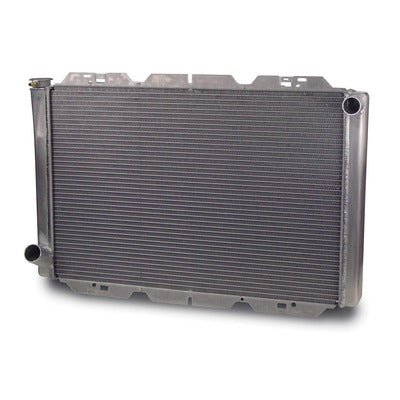

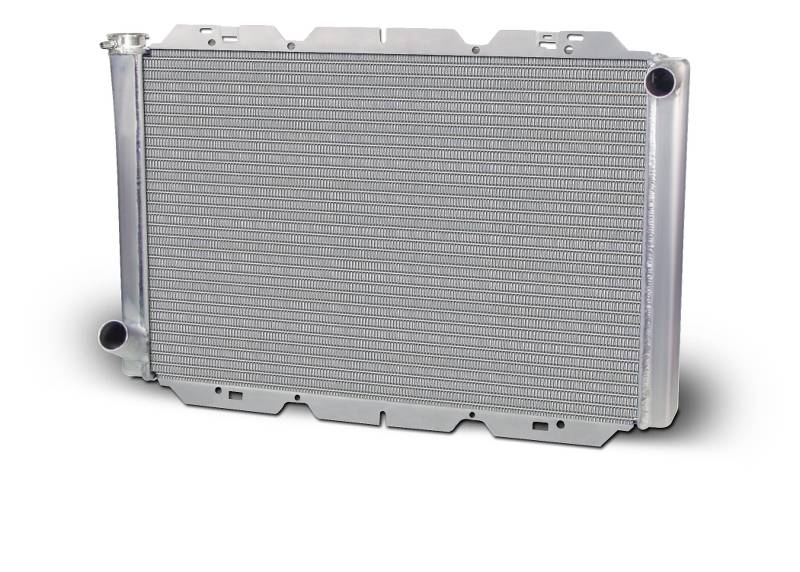

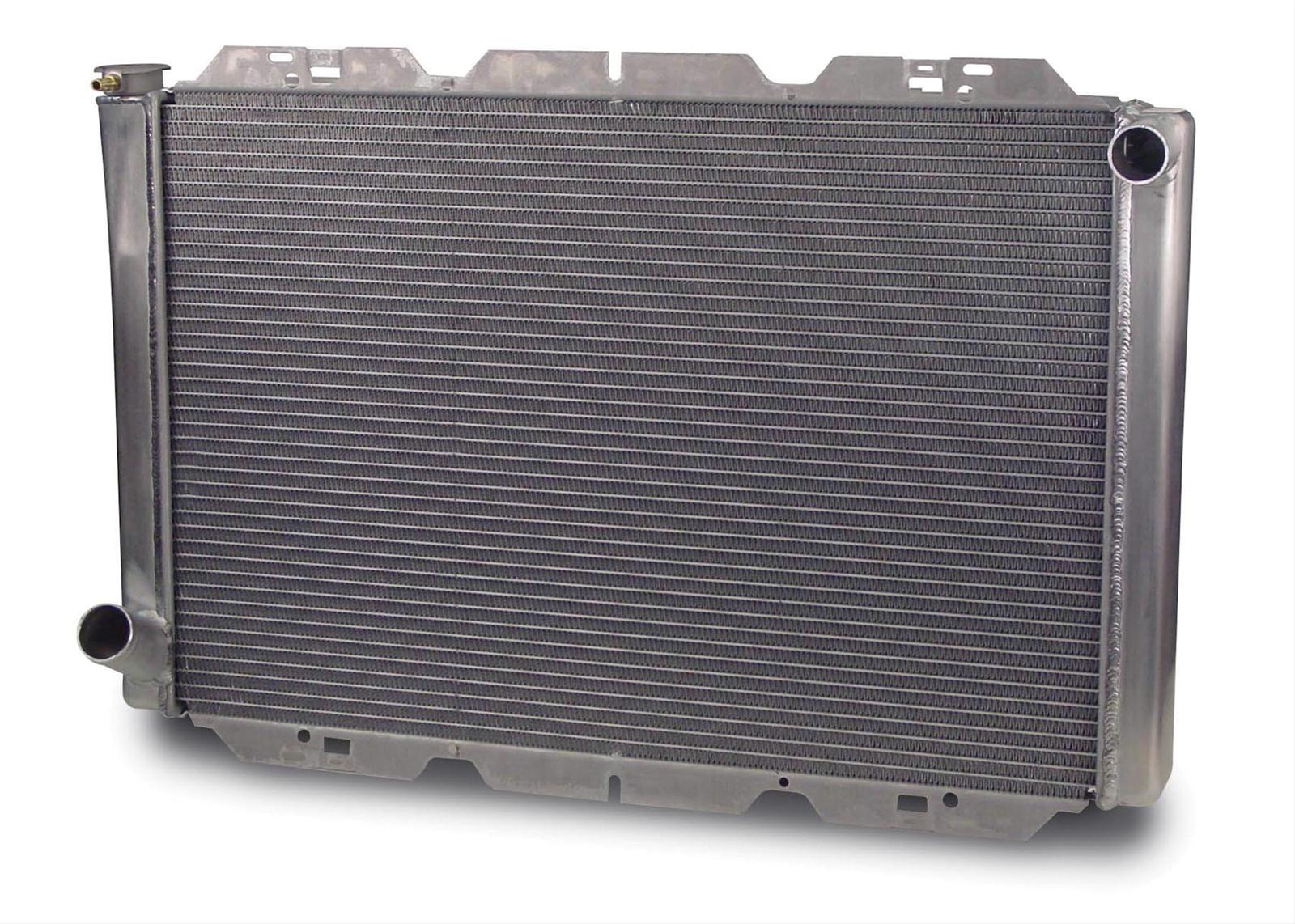

AFCO single pass Ford, Mopar racing radiator 31" W x 19" T offers great fit and performance, along with an optimized fin count ratio for maximum cooling efficiency. ALL AFCO radiators offer a furnace brazed sealed core without the use of epoxy, and are all 100% tested before shipping.
Specifications
| Brand |
AFCO Racing |
| Manufacturer's Part Number |
80102FN |
| Part Type |
Radiators |
| Product Line |
AFCO Racing Universal Performance Line Radiators |
| Radiator Material |
Aluminum |
| Radiator Style |
Crossflow |
| Overall Width (in) |
31.625 in. |
| Overall Height (in) |
21.000 in. |
| Overall Thickness (in) |
3.000 in. |
| Inlet Location |
Upper driver side |
| Outlet Location |
Lower passenger side |
| Radiator Finish |
Natural |
| Core Width (in) |
27.500 in. |
| Core Height (in) |
18.500 in. |
| Core Thickness (in) |
2.250 in. |
| Row Quantity |
2 |
| Transmission Cooler |
No |
| Trans Cooler Adapter Fittings Included |
No |
| Inlet Size |
1 1/2 in. |
| Outlet Size |
1 3/4 in. |
| Tube Size |
1 in. |
| Fan Included |
No |
| Radiator Cap Included |
No |
| Quantity |
Sold individually. |
| Notes |
30/10 outlet angle. |
