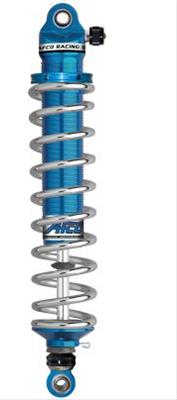

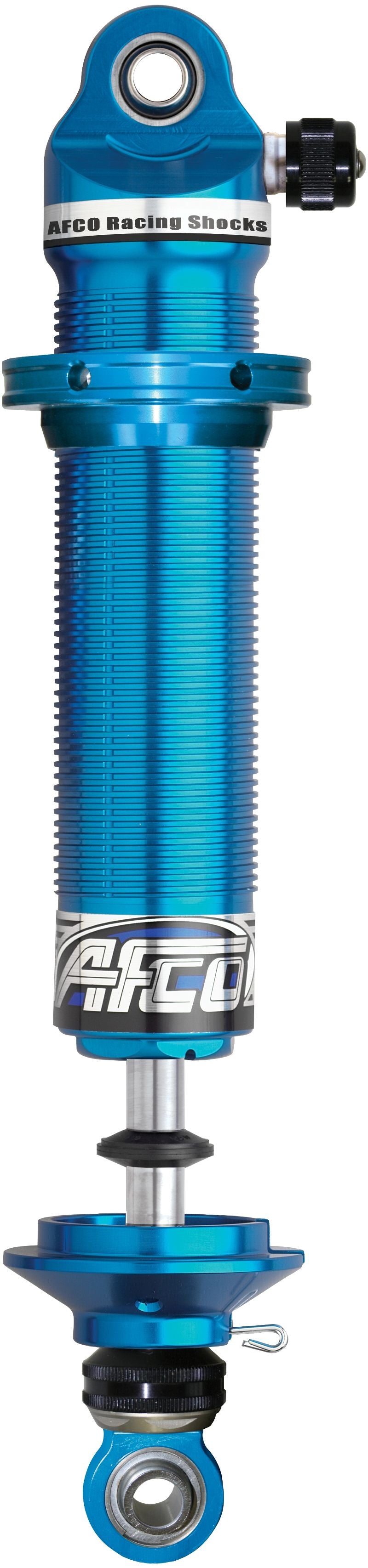

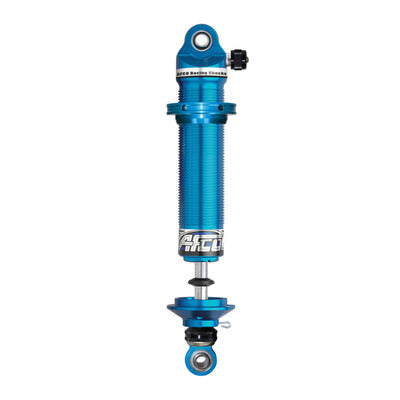

The Big Gun X Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass. If you have 1,000 - 1,500 horsepower and are on a drag radial tire, this is the valving package you need to complement your race program. For quicker adjustments, mount your AFCO shocks upside down for unsprung weight savings and ease in accessing the rebound adjuster. Double Adjustable - broadest range of adjustment in industry. Big Gun X Valving - specifically valved for high horsepower applications: S/O, NPS, Ultra Street, and Quick 8.Great for BIG or SMALL tire door slammers. Rebuildable and revalvable. Body Mount: 1/2 I.D. Bearing (1 wide).Shaft Mount: 1/2 I.D. Bearing (1 wide).
- 6" Stroke
- 13" Compressed Length
- 18.92" Extended Length
- 12-14" Suggested Spring Height
- 14.75"-16.75" Suggested Ride Height
- MPN: 3860BGX
Specifications
| Brand |
AFCO Racing |
| Part Number |
3860BGX |
| Part Type |
Coilover Shocks and Struts |
| Product Line |
AFCO Racing Big Gun X Twin Tube Series Coilover Shocks |
| Coilover Shock Type |
Double-adjustable |
| Shock Body Material |
Aluminum |
| Shock Body Finish |
Blue anodized |
| Adjustable Valving |
Yes |
| Extended Length (in) |
18.920 in. |
| Collapsed Length (in) |
13.000 in. |
| Upper Mount |
Bearing |
| Lower Mount |
Bearing |
| Internal Design |
Twin-tube |
| Gas Charged |
Yes |
| Body Diameter (in) |
2.200 in. |
| Coilover Springs Included |
No |
| Recommended Spring Diameter |
2.625 in. |
| Recommended Spring Length |
12-14 in. |
| Adjustable Mounting Bracket Included |
No |
| Hardware Included |
No |
| Quantity |
Sold individually |
