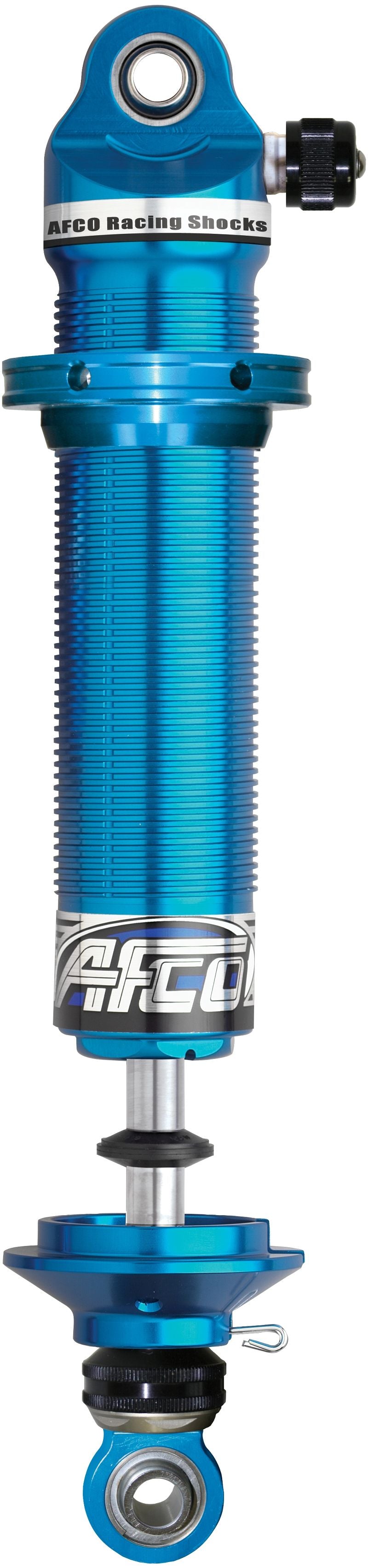

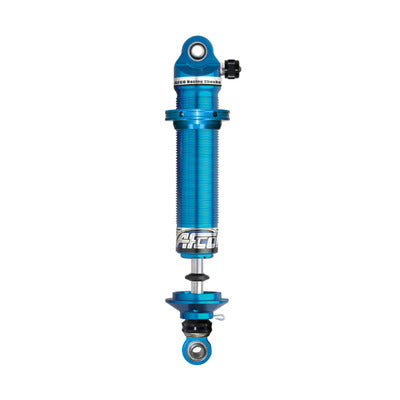

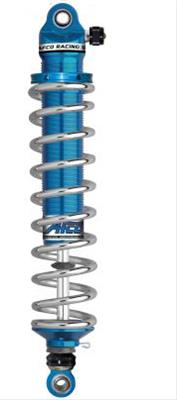

AFCO Racing Aluminum Twin Tube Big Gun X Shock 5 In Stroke 12 In Comp 16.92 Extended 3850BGX
AFCO Racing Aluminum Twin Tube Big Gun X Shock 5 In Stroke 12 In Comp 16.92 Extended 3850BGX
AFCO Racing Aluminum Twin Tube Big Gun X Shock 5 In Stroke 12 In Comp 16.92 Extended 3850BGX

AFCO Racing Aluminum Twin Tube Big Gun X Shock 5 In Stroke 12 In Comp 16.92 Extended 3850BGX

AFC3850BGX (10 in stock)

AFCO Racing Products

Regular price $508.99 Sale

The Big Gun X Double Adjustable Twin Tube shocks are specifically valved for high horsepower drag radial tire equipped applications. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Superior traction is achieved through a high flow piston that delivers consistent performance, pass after pass. If you have 1,000 - 1,500 horsepower and are on a drag radial tire, this is the valving package you need to complement your race program.

  • Double Adjustable - broadest range of adjustment in industry
  • Big Gun X Valving - specifically valved for high horsepower applications: S/O, NPS, Ultra Street, and Quick 8
  • Great for BIG or SMALL tire door slammers
  • Rebuildable and Revalvable
  • Body Mount: 1/2" I.D. Bearing 1" wide
  • Shaft Mount: 1/2" I.D. Bearing 1" wide
  • MPN: 3850BGX

Specifications

Brand AFCO Racing
Manufacturer's Part Number 3850BGX
Part Type Coilover Shocks and Struts
Product Line AFCO Racing T2 Big Gun Drag Shocks
Coilover Shock Type Double-adjustable
Shock Body Material Aluminum
Shock Body Finish Blue anodized
Adjustable Valving Yes
Number of Valving Selections 62
Extended Length (in) 16.920 in.
Collapsed Length (in) 12.000 in.
Upper Mount Bearing
Lower Mount Bearing
Internal Design Twin-tube
Gas Charged No
Body Diameter (in) 2.150 in.
Coilover Springs Included No
Recommended Spring Diameter (in) 2.625 in.
Recommended Spring Length (in) 10-12 in.
Adjustable Mounting Bracket Included No
Hardware Included Yes
Quantity Sold individually
Notes Designed for drag radial tire applications.
