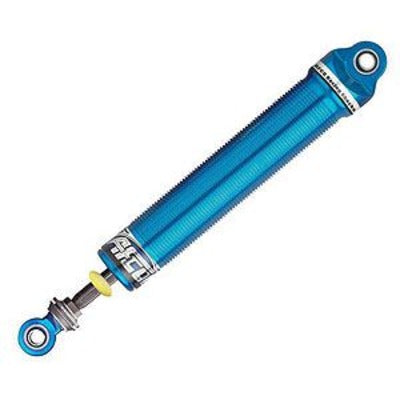

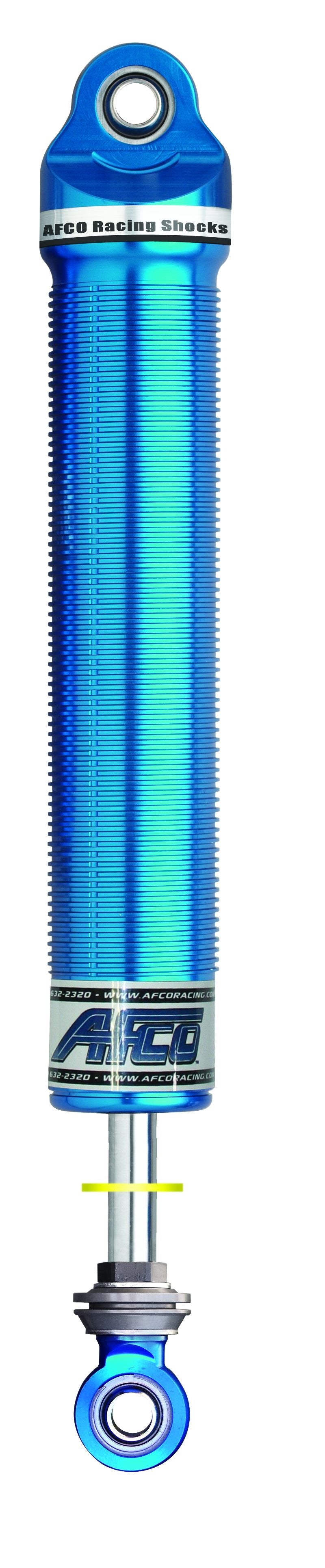

AFCO 13 series, Twin Tube design, threaded body, 2.13" outside diameter for coil-over or noncoil-over applications. 5" stroke with 0 valve on compression and rebound. Shim stack technology gives excellent consistency and repeatability.
- O.D.: 2.175"
- Extended Length: 20.25"
- Collapsed Length: 13.32"
- Upper Mount: Eyelet
- Lower Mount: Eyelet
- Stroke: 7"
- Compressed Valving: 3
- Rebound Valving: 7
- MPN: 1373-7T
Specifications
| Brand |
AFCO Racing |
| Manufacturer's Part Number |
1373-7T |
| Part Type |
Coilover Shocks and Struts |
| Product Line |
AFCO Racing 13T Series Coilover Shocks |
| Coilover Shock Type |
Non-adjustable |
| Shock Body Material |
Aluminum |
| Shock Body Finish |
Blue anodized |
| Adjustable Valving |
No |
| Extended Length (in) |
20.250 in. |
| Collapsed Length (in) |
13.320 in. |
| Threaded Adjustment Range |
7.590 in. |
| Upper Mount |
Bearing |
| Lower Mount |
Bearing |
| Internal Design |
Twin-tube |
| Gas Charged |
No |
| Body Diameter (in) |
2.170 in. |
| Coilover Springs Included |
No |
| Adjustable Mounting Bracket Included |
No |
| Hardware Included |
No |
| Quantity |
Sold individually. |
| Notes |
Contains a number 3 compression valve and number 7 rebound valve. |
