Aeromotive
Aeromotive Phantom 340 Universal In-Tank Fuel Pump System
Aeromotive Phantom 340 Universal In-Tank Fuel Pump System
Regular price
$673.45 USD
Regular price
Sale price
$673.45 USD
Unit price
/
per
SKU:AFS18688
Inventory: 2 in stock
Couldn't load pickup availability

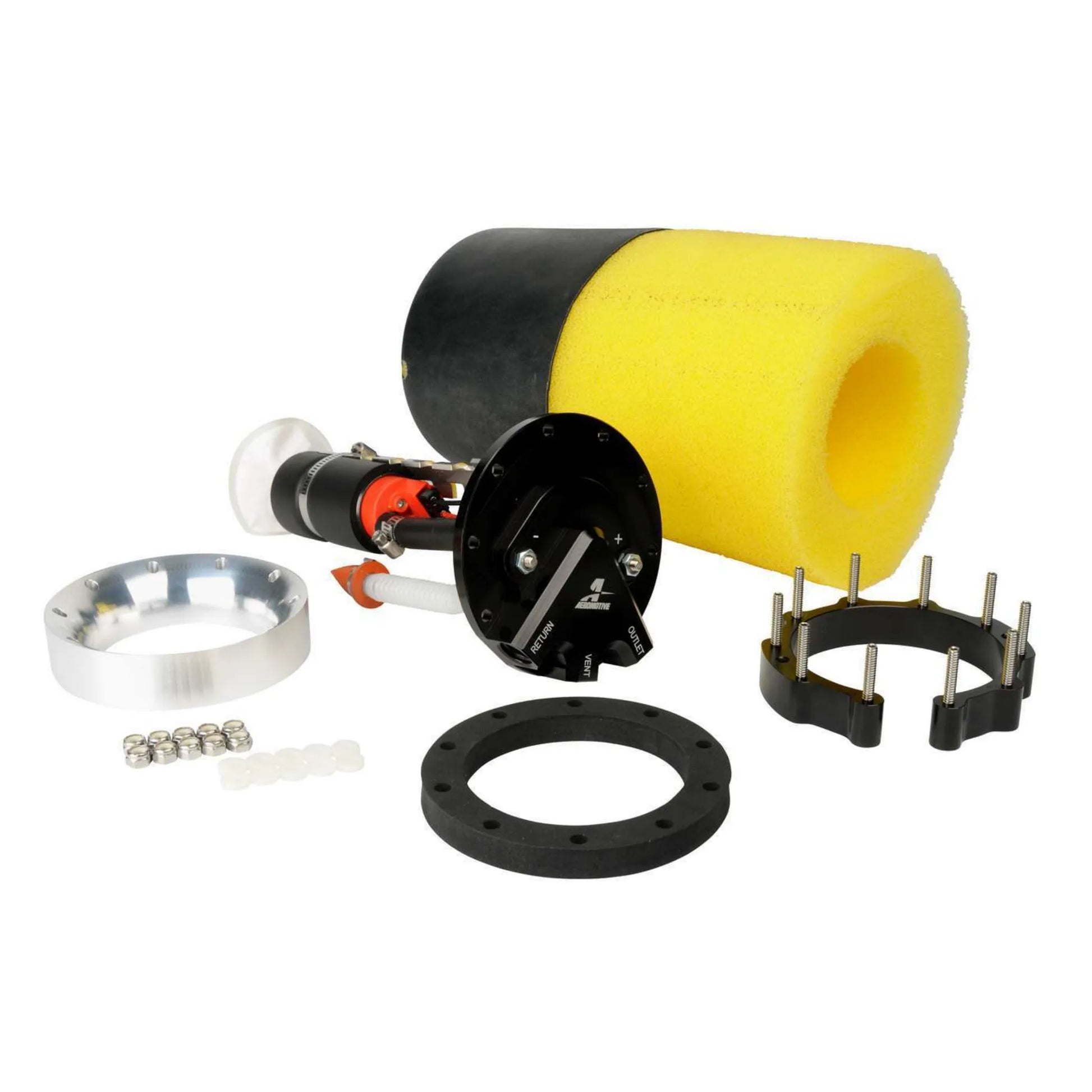

Aeromotive’s Phantom 340 fuel system makes it possible to mount a high-performance fuel pump inside virtually any fuel tank, including the factory one. The 340 uses an innovative modular design (fuel pump and baffle/basket) with an internal baffle to control fuel slosh and keep the pump submerged. Foam can be cut to fit 6-in. to 10-in. tall tanks. The system supports 700 HP EFI supercharged, and 1000 HP carbureted and supercharged. The pump has three ORB-06 Ports –supply, return and vent.
Fuel Pump - Phantom 340 Stealth System - Electric - In-Tank - 340 lph at 45 psi - 6 an Outlet / Return / Vent - Install Kit - E85 / Gas - Kit - MPN: 18688
|
Brand
|
Aeromotive
|
|
Part Number
|
18688
|
|
Product Line
|
Phantom 340 Stealth
|
|
Electric/Mechanical
|
Electric
|
|
In-Tank/Inline
|
In-Tank
|
|
In-Tank Depth Minimum
|
6 in
|
|
In-Tank Depth Maximum
|
11 in
|
|
Outlet Size
|
6 AN
|
|
Outlet Style
|
Female
|
|
Outlet O-Ring
|
Yes
|
|
Return Port Size
|
6 AN
|
|
Return Port Style
|
Female
|
|
Return Port O-Ring
|
Yes
|
|
Vent Port Size
|
6 AN
|
|
Vent Port Style
|
Female
|
|
Vent Port O-Ring
|
Yes
|
|
lph A
|
340 lph
|
|
lph A PSI
|
45 PSI
|
|
Fuel Pickup Included
|
Yes
|
|
Fuel Pickup Style
|
Filter Sock
|
|
Gasoline Compatible
|
Yes
|
|
Diesel Compatible
|
No
|
|
Methanol Compatible
|
No
|
|
E85 Compatible
|
Yes
|
|
Mounting Collar Included
|
Yes
|
|
Internal Baffle
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Anodized
|
|
Quantity
|
Kit
|
