Aeromotive Brushless Stealth Fuel Cell 20 Gal
AFS18373 (Not in stock)Aeromotive
Regular price
$2,698.95
Sale

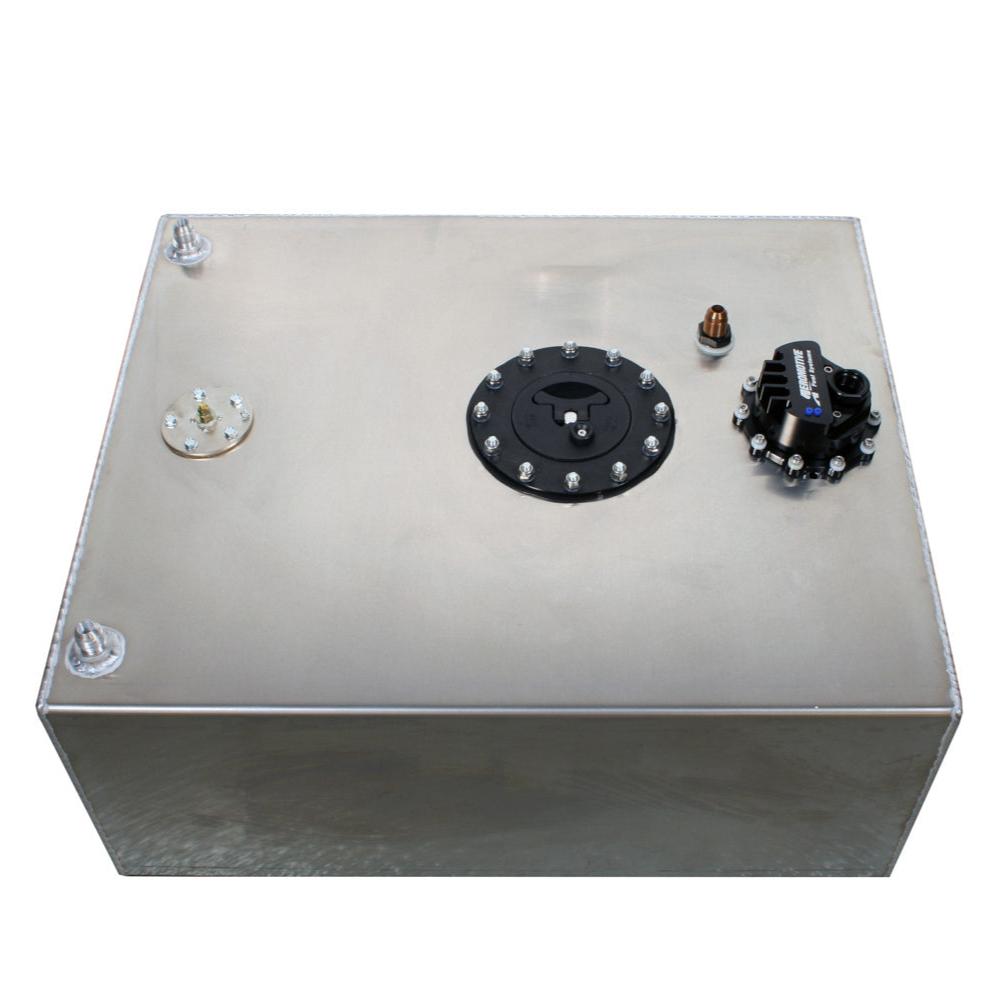

Brushless Stealth Fuel Cell - 20 Gallon Fuel Cell
Street/strip aluminum fuel cells incorporate built-in brushless Stealth electric fuel pumps with aircraft filler cap, -10AN ORB outlet, -8AN return, dual, roll-over protected -8AN vents and integral 0-90 ohm fuel level sending unit.
Offered in 6- (12"w. x 12"l. x 10"h.), 15- (20"w. x 18"l. x 10"h.) or 20-gallon (20"w. x 24"l. x 10"h.) capacities, cells utilize a baffled design to keep fuel at the pump inlet. Choose from cells with A1000, Eliminator, 3.5 GPM or 5 GPM fuel pumps. A1000 systems are capable of supplying up to 1,500 horsepower, Eliminator up to 2,300 horsepower, Pro 3.5 GPM, up to 2,600 horsepower, and Pro Plus 5 GPM up to 3,600 horsepower. Systems are compatible with gasoline, methanol, or ethanol.
- Aeromotive Aluminum Fuel Cell 20-Gal w/ 5.0 GPM Spur Gear Pump
- Fuel Cell and Pump
- 5.0 Brushless Stealth Fuel Cell
- 20 gallon
- 20 x 24 x 10 in Tall - 10 AN O-Ring Outlet - 8 AN Return - 8 AN Vent
- Aluminum - Natural
- E85 / Gas
- Universal
Specifications
|
Brand
|
Aeromotive
|
|
Part Number
|
18373
|
|
Product Line
|
5.0 Brushless Stealth
|
|
Style
|
Cell
|
|
Shape
|
Rectangle
|
|
Horizontal / Vertical
|
Horizontal
|
|
Baffled
|
Yes
|
|
Capacity
|
20 gal
|
|
Width
|
24 in
|
|
Depth
|
20 in
|
|
Height
|
10 in
|
|
Outlet Location
|
Fuel Pump
|
|
Outlet Quantity
|
1
|
|
Outlet Size
|
10 AN
|
|
Outlet Style
|
Female
|
|
Outlet O-Ring
|
Yes
|
|
Return Quantity
|
1
|
|
Return Size
|
8 AN
|
|
Return Style
|
Male
|
|
Vent Quantity
|
2
|
|
Vent Size
|
8 AN
|
|
Vent Style
|
Male
|
|
Rollover Valve Included
|
Yes
|
|
Pickup Included
|
Yes
|
|
Pickup Style
|
Fluted
|
|
Cap Style
|
Aircraft
|
|
Cap Attachment Method
|
Twist-On
|
|
Cap Raised / Flush
|
Flush Mount
|
|
Fill Plate Shape
|
Round
|
|
Fill Plate Mounting Bolt Quantity
|
12
|
|
Gasoline Compatible
|
Yes
|
|
Methanol Compatible
|
Yes
|
|
Ethanol Compatible
|
Yes
|
|
Fuel Pump Included
|
Yes
|
|
Fuel Pump Liter Per Hour
|
1114 lph
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
