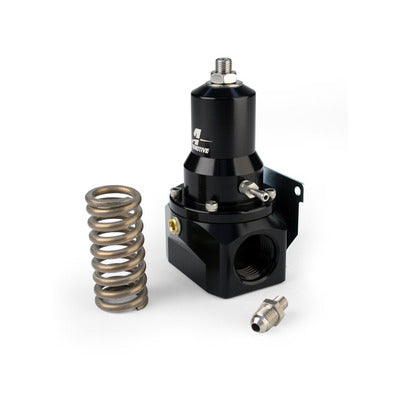

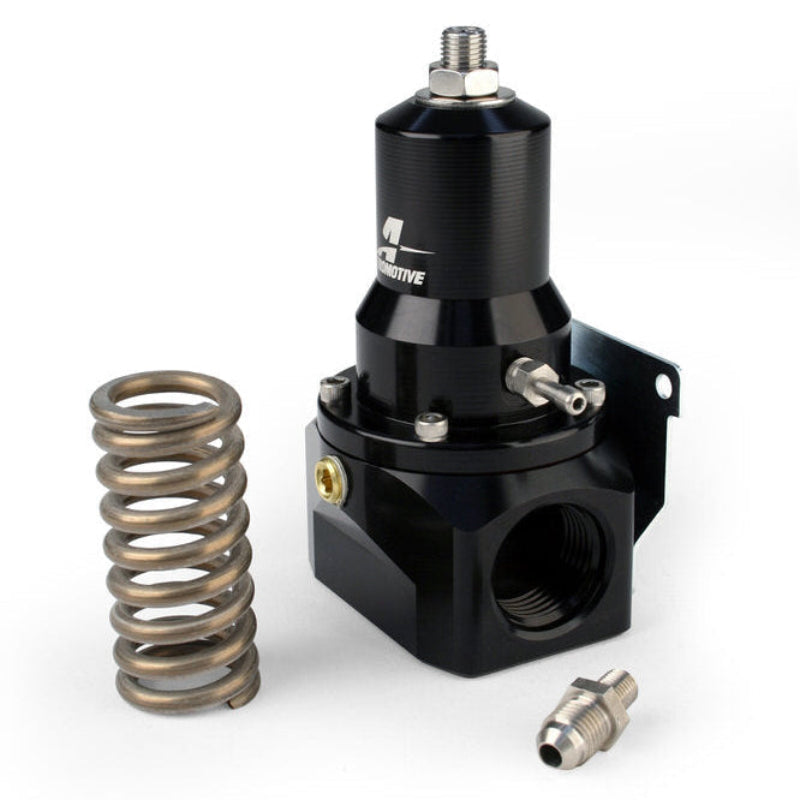

Aeromotive Extreme Flow EFI Fuel Pressure Regulator

The new Extreme-Flow EFI Regulator features -12 AN ports and works with Belt or Hex Drive fuel pumps. Its compact body includes dual ORB-12 inlet/outlet ports and one ORB-12 return port. A 0.500” high-flow valve supports 7–32 GPM pumps and all common fuels. Dual springs provide a wide pressure range: 30–75 PSI standard and 75–120 PSI high-pressure. With 1:1 boost reference, it delivers precise, high-flow performance for race-only vehicles.

• Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500" high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps
• Gasoline, ethanol, alcohol and diesel compatible
• Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight
• This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle
• Standard spring (installed) supports 30-75 PSI base fuel pressure
• High Pressure spring (included) supports 75-120 PSI base fuel pressure
• Supports vacuum and boost reference on a 1:1 ratio with PSI

Fuel Pressure Regulator - Extreme Flow EFI - 30 to 120 psi - In-Line - 12 AN Female O-Ring Inlet - 12 AN Female O-Ring Outlet - 10 AN Female O-Ring Return - 1/8 in NPT Port - Black Anodized - E85 / Gas / Diesel - Each - MPN: 13137
