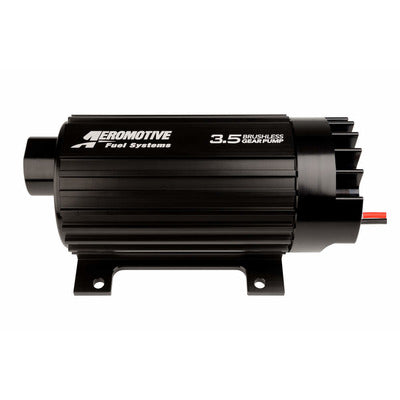

Aeromotive 3.5 Spur Gear Fuel Pump Brushless Design

Brushless Inline Spur Gear Fuel Pump

A spur gear pump is combined with an integral external brushless controller for unsurpassed durability. These fuel pumps are offered in 3.5, 5.0, 7.0 and 10.0 GPM versions. The 3.5 can feed up to 2,600 carbureted HP/2,400 fuel injected HP; 5.0 model has the ability to support up to 3,600 carbureted HP/3,400 fuel injected HP; 7.0 model delivers sufficient flow for up to 5,400 carbureted HP/4,800 fuel injected HP, and the top-of-the-line 10.0 unit provides flow for up to 7,600 carbureted HP/6,900 fuel injected HP. Pumps with built-in variable speed controller reduce fuel flow during low engine demand, minimizing heat and reducing fuel recycling. Pumps include -12 ORB inlet and -10 ORB outlet ports.

Note: Unit is not compatible with pulse modulated systems or fuel pump speed controller.

Note: Includes built-in mounting feet.

• Brushless 3.5 GPM Signature Series Fuel Pump
• Pro-Series 3.5
• Electric - In-Line
• 1350 lb/hr at 9 psi
• 12 AN Female O-Ring Inlet - 10 AN Female O-Ring Outlet
• Black
• E85 / Gas
• Sold as Each
• MPN: 11185

Specifications
