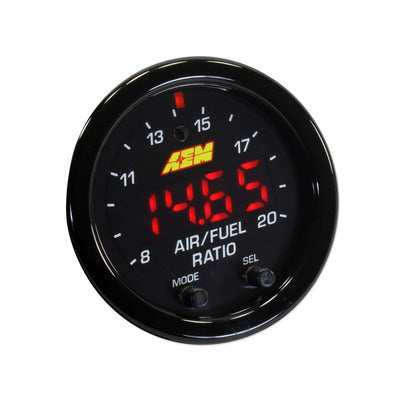

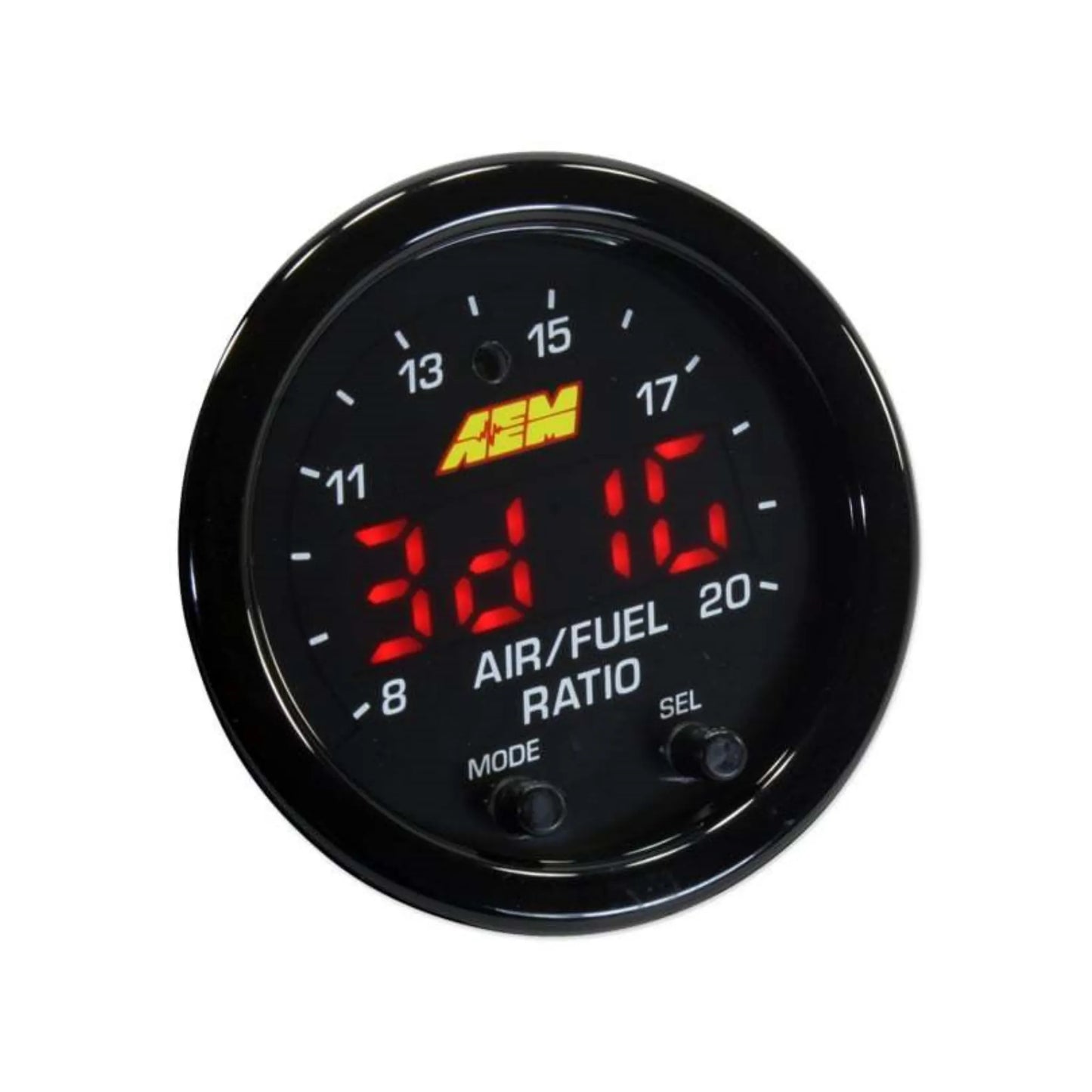

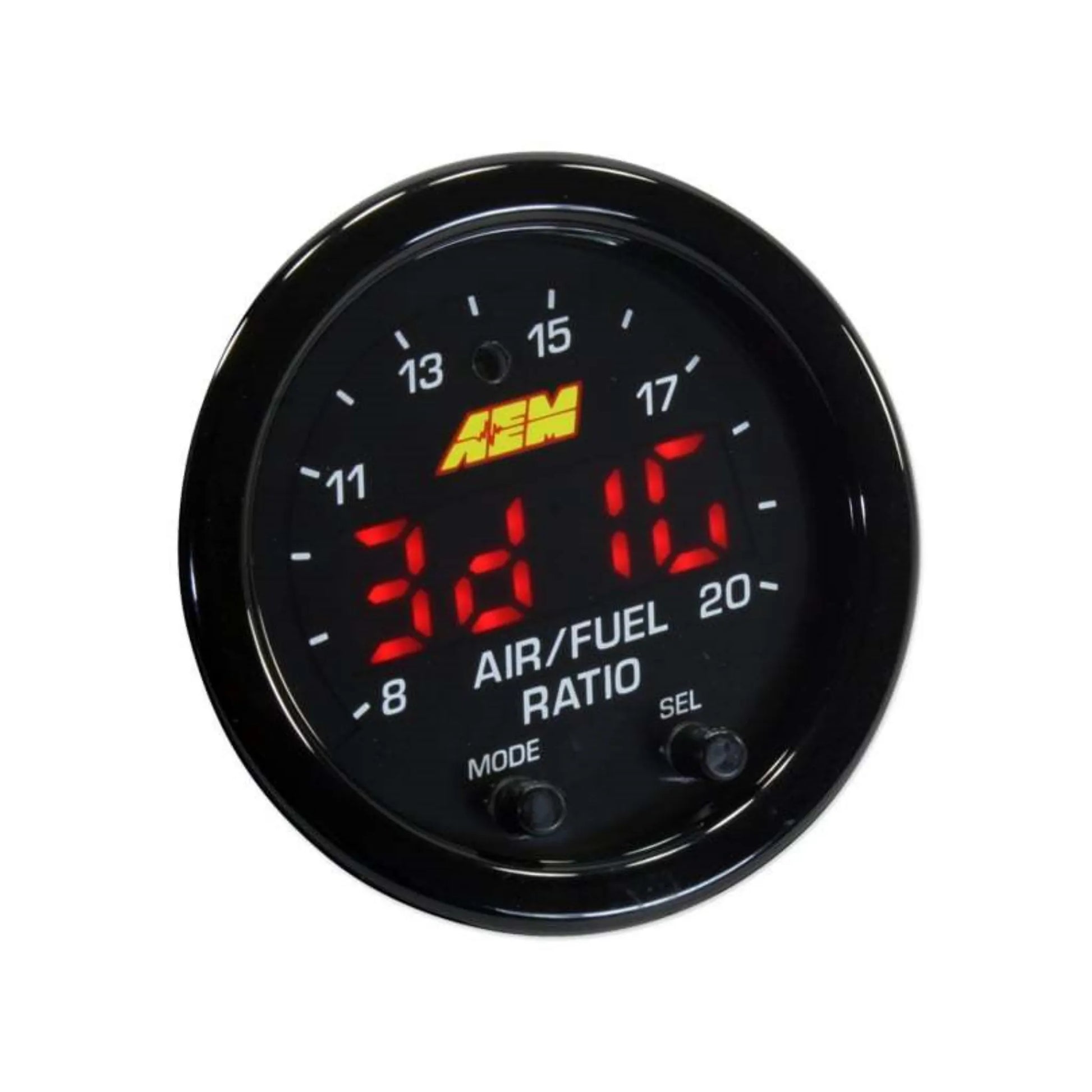

X-Series Wideband UEGO AFR Gauge - Air/Fuel Ratio Sensor Controller
Manufactured using patented X-Digital technology for unsurpassed response and accuracy, gauge provides precise monitoring of air/fuel ratio. Sensor controllers include a 0-5V and RS232 serial port output for feedback and data logging. Gauges are 2-1/16" diameter and offered in conventional or OBDII versions, which allows viewing AFR through the vehicle’s OBDII port.
- Air-Fuel Ratio Gauge
- X-Series
- UEGO
- Wideband
- 8.:1-20:1 AFR
- Electric
- Digital
- 2-1/16 in Diameter
- Black Face
- Sold as Each
- MPN: 30-0300
Specifications
| Brand |
AEM |
| Part Number |
30-0300 |
|
Product Line
|
X-Series
|
|
Wideband
|
Yes
|
|
Increment
|
0.1
|
|
Gauge Diameter (in)
|
2-1/16 in
|
|
Gauge Diameter (mm)
|
52.4 mm
|
|
Low Range
|
8.0 to 1
|
|
High Range
|
20.0 to 1
|
|
Light Style
|
LED
|
|
Face Color
|
Black / White
|
|
Bezel Color
|
Black / White
|
|
Number Color
|
Red
|
|

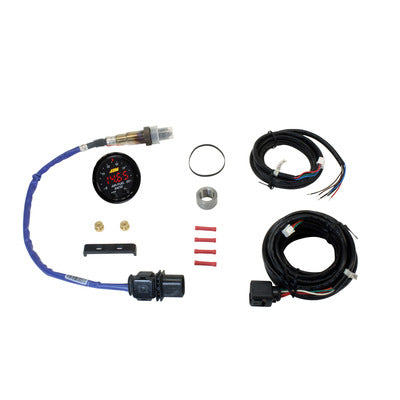

Oxygen Sensor Included
|
Yes
|
|
Sender Thread
|
18 mm x 1.5
|
|
Wiring Harness Included
|
Yes
|
|
Weld-In Bung Included
|
Yes
|
|
Quantity
|
Kit
|
