JE Pistons

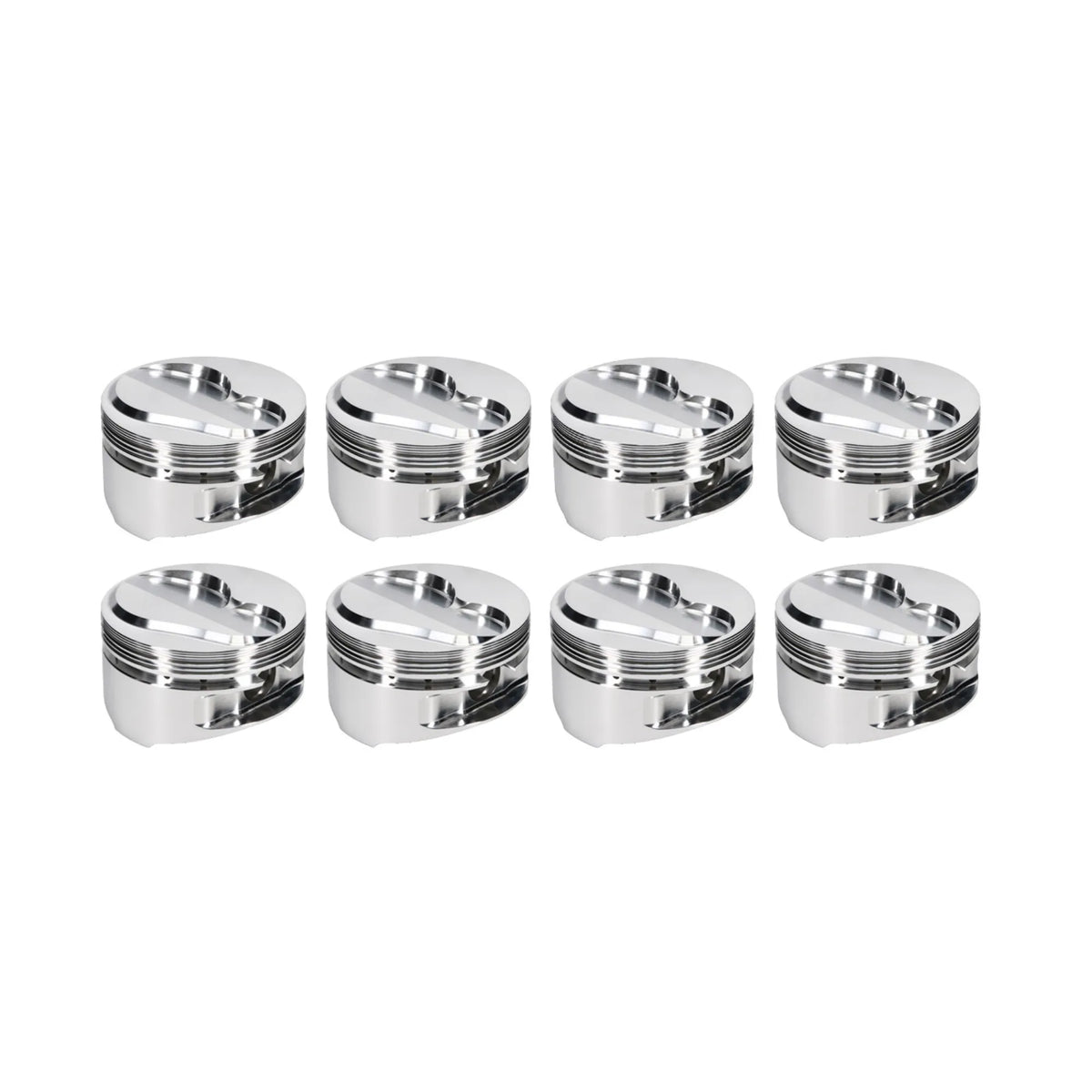

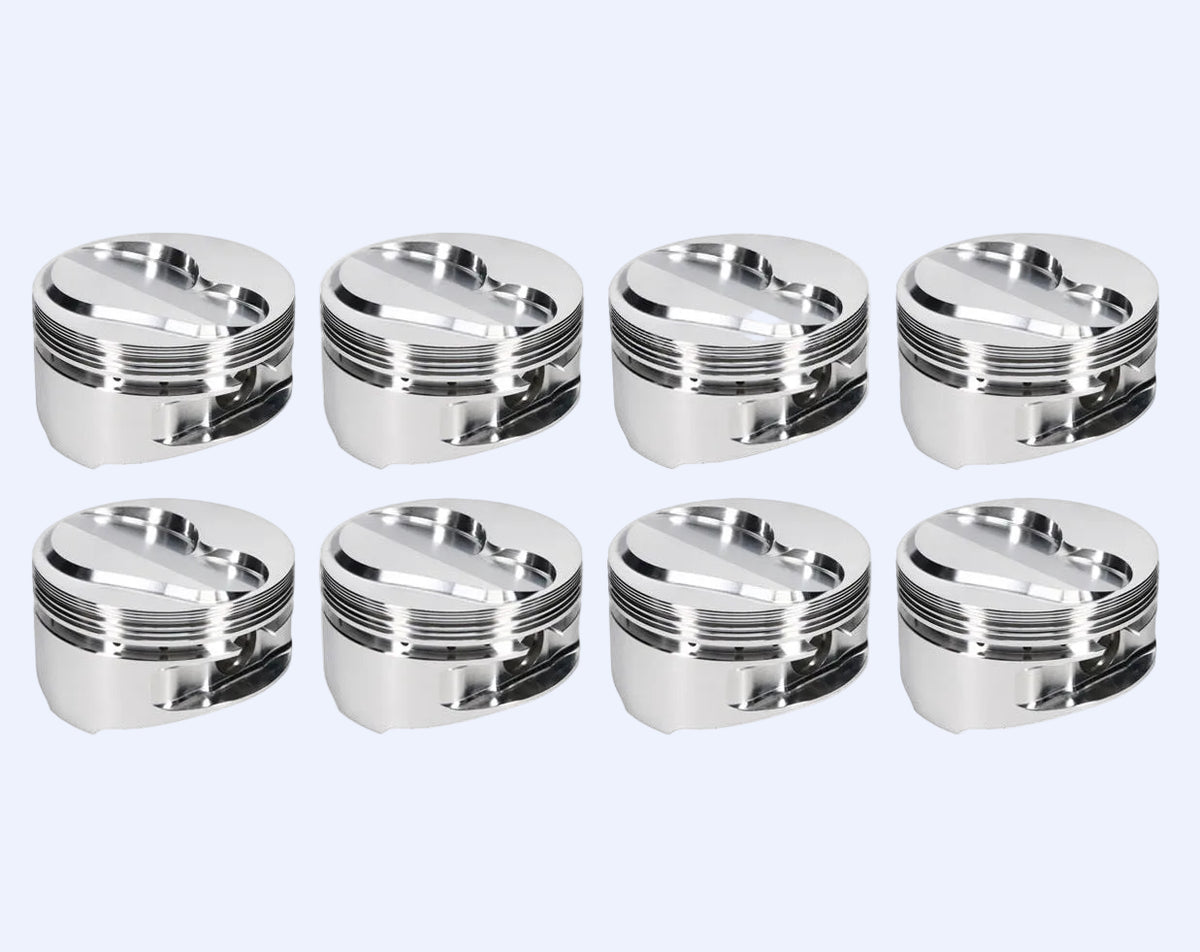

JE 12TM Series Forged Pistons 170763
JE 12TM Series Forged Pistons 170763
SKU:JEP170763
Inventory: 1 in stock
Couldn't load pickup availability
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons' performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Piston, 12TM Series, Forged, 4.155 in Bore, 1.100 in Compression Height, 0.064 x 0.064 x 0.218 in Ring Grooves, Plus 2.60 cc, Small Block Chevy, Set of 8
| Brand |
JE Automotive
|
| Part Number |
170763
|
| Product Line |
12TM Series
|
| Bore |
4.155 in
|
| Style |
Dome
|
| Material Style |
Forged
|
| Valve Angle |
15 Degree
|
| Compression Height (in) |
1.100 in
|
| Volume |
Plus 2.60 cc
|
| Wrist Pin Included |
Yes
|
| Wrist Pin Style |
Floating/Press
|
| Wrist Pin Diameter (in) |
0.927 in
|
| Wrist Pin Length |
2.750 in
|
| Top Ring Groove Thickness |
0.064 in
|
| 2nd Ring Groove Thickness |
0.064 in
|
| Oil Ring Groove Thickness |
0.218 in
|
| Rings Included |
No
|
| Alloy |
2618
|
| Material |
Aluminum
|
| Finish |
Natural
|
| Quantity |
Set of 8
|
