CSF Radiator 7223, 05-13 Chevrolet C6 Corvette Base/Grand Sport/427/Z06

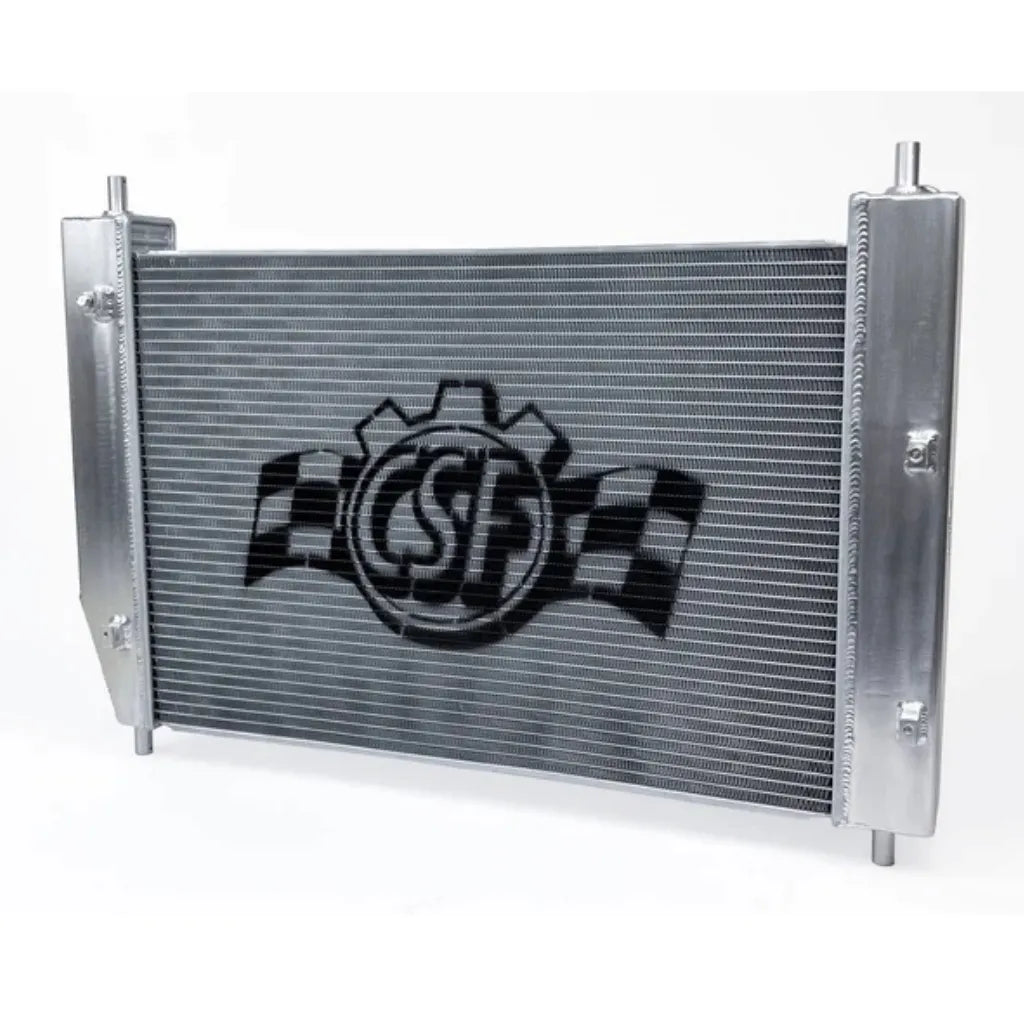

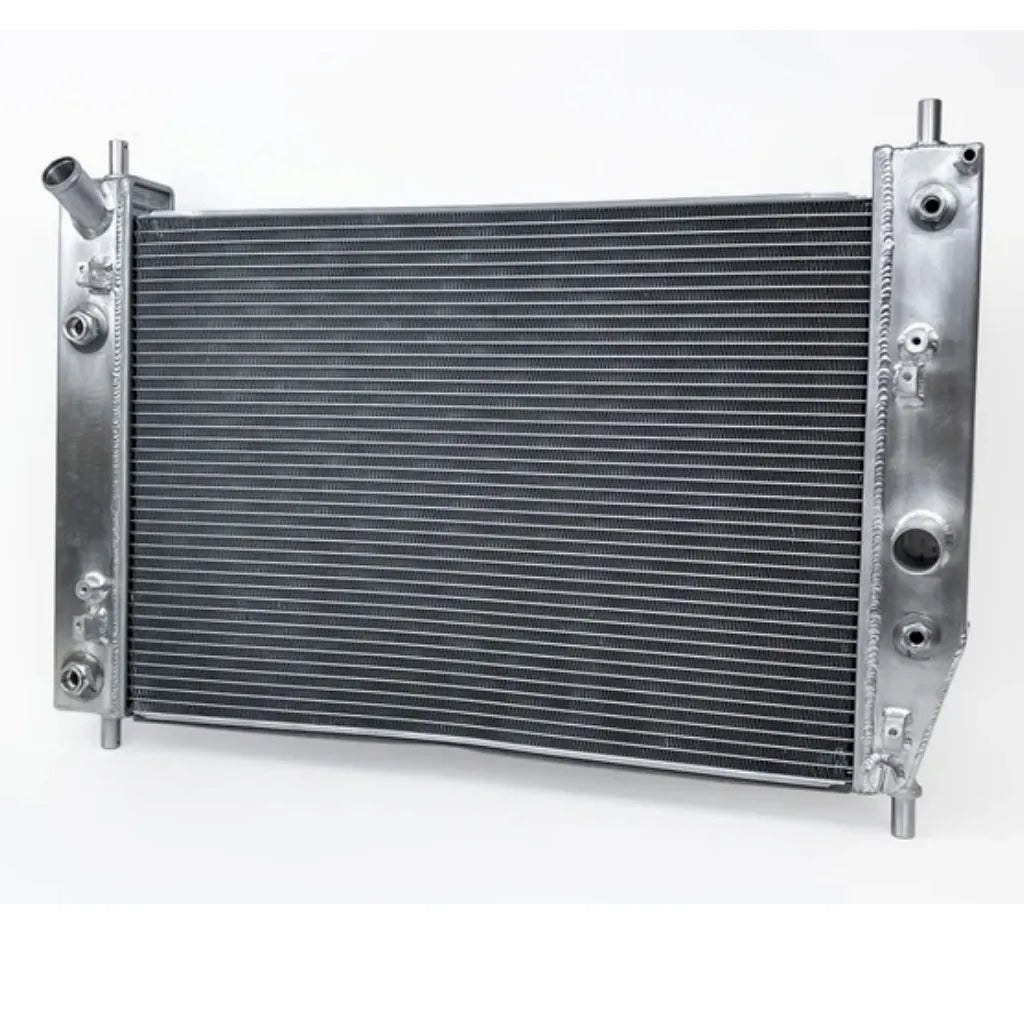

05-13 Chevrolet C6 Corvette Base/Grand Sport/427/Z06 All-Aluminum Radiator

The original OE radiator from Chevy features plastic tanks with a single row aluminum core design. While this is generally accepted as good quality and durable, it is not the best option for high horsepower builds and hard driving. Big V8s get hot, and the LS is no exception. Anything you can do to help keep temperatures in check will improve longevity of your motor and components.

• 2-Row, 52mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Shorter core height provides clearance for supercharger installations
• No need to modify the radiator core support or trim the radiator
• Fits all OEM and Aftermarket Intake Systems

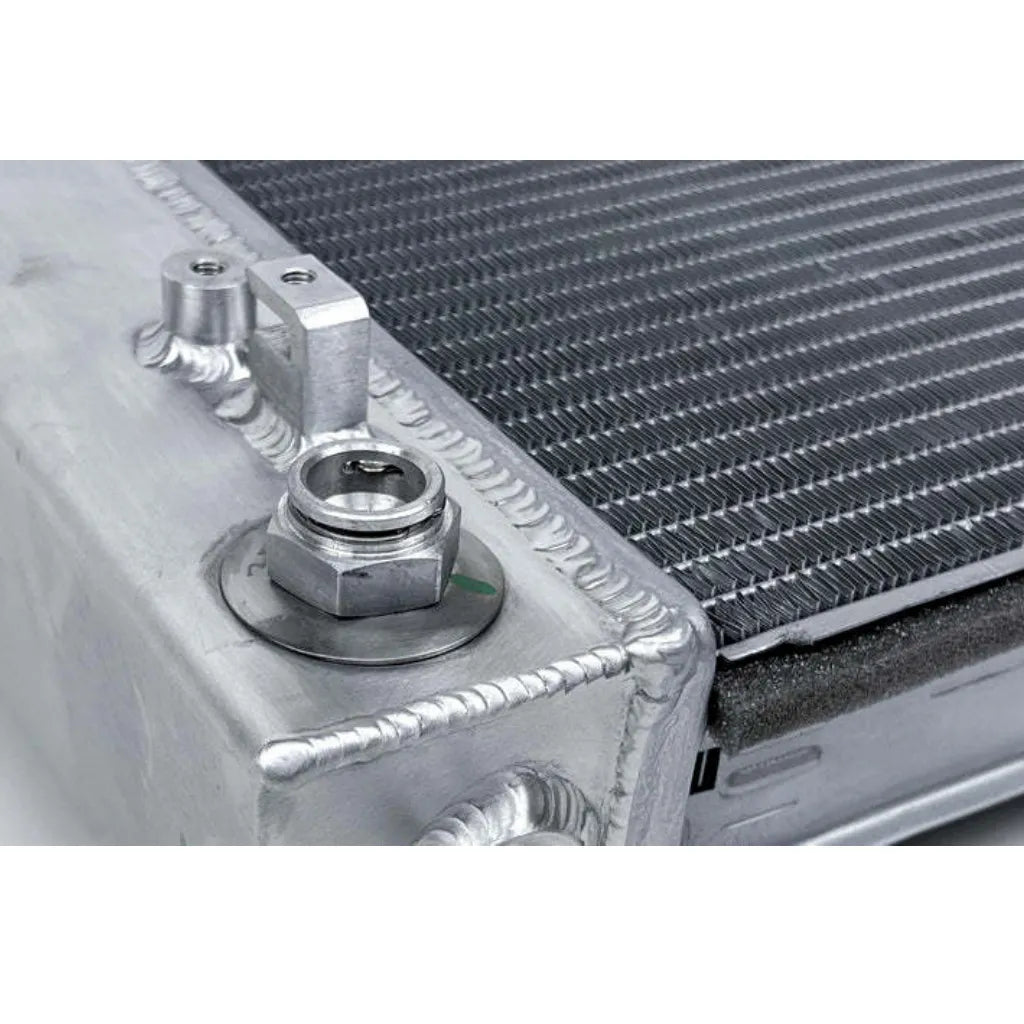

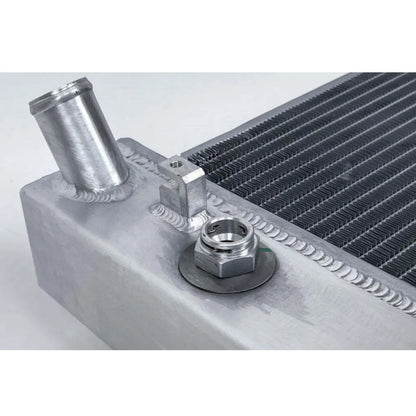

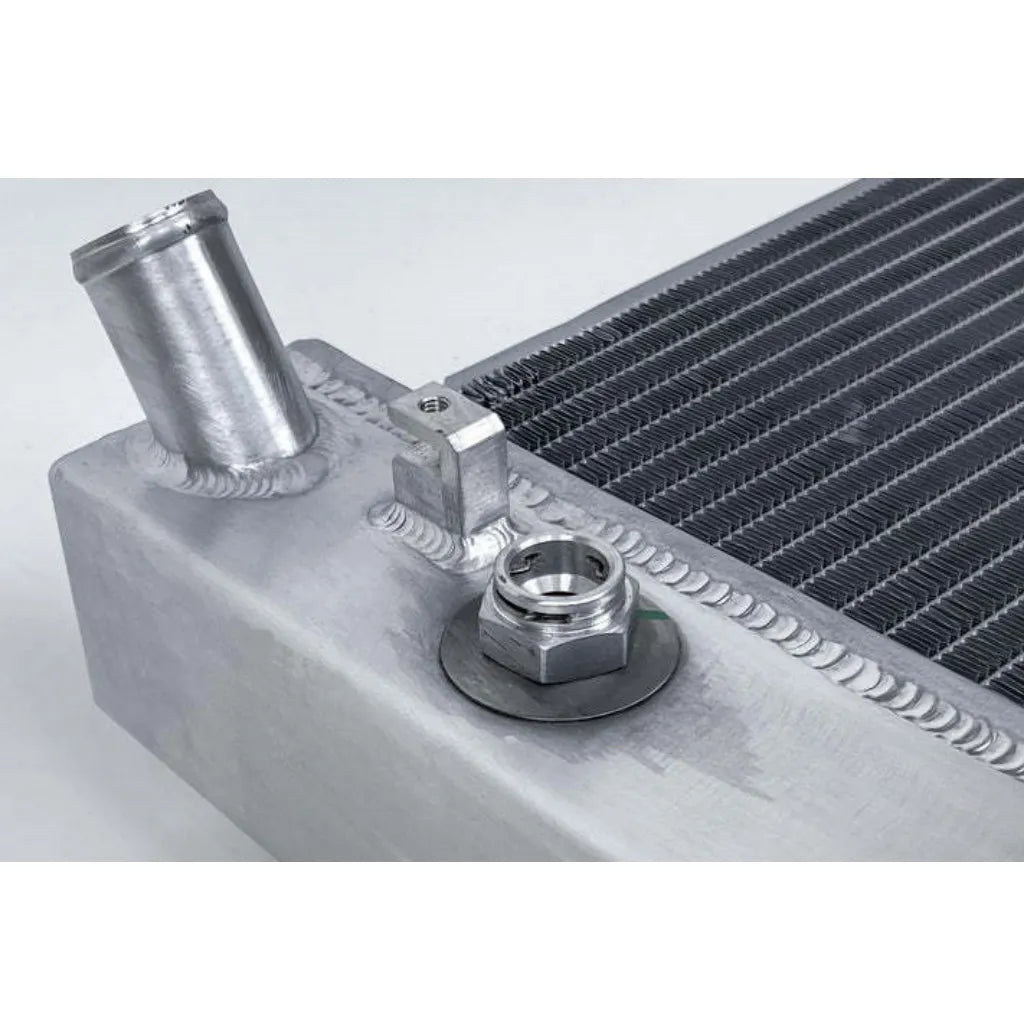

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Mounting Pins have Cotter Pin Holes for securing A&A Corvette's Top Shroud
  Built In Engine Oil cooler and Automatic Transmission Cooler with Factory-style Quick Connect Fittings
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Radiator, 23.38 in W x 16.5 in H x 2.04 in D, Single Pass, Driver Side Inlet, Passenger Side Outlet, Aluminum, Polished, Chevy Corvette 2005-13
