ICT Billet Gen V LT Engine Swap / Engine Mount Brackets
(2 in stock)

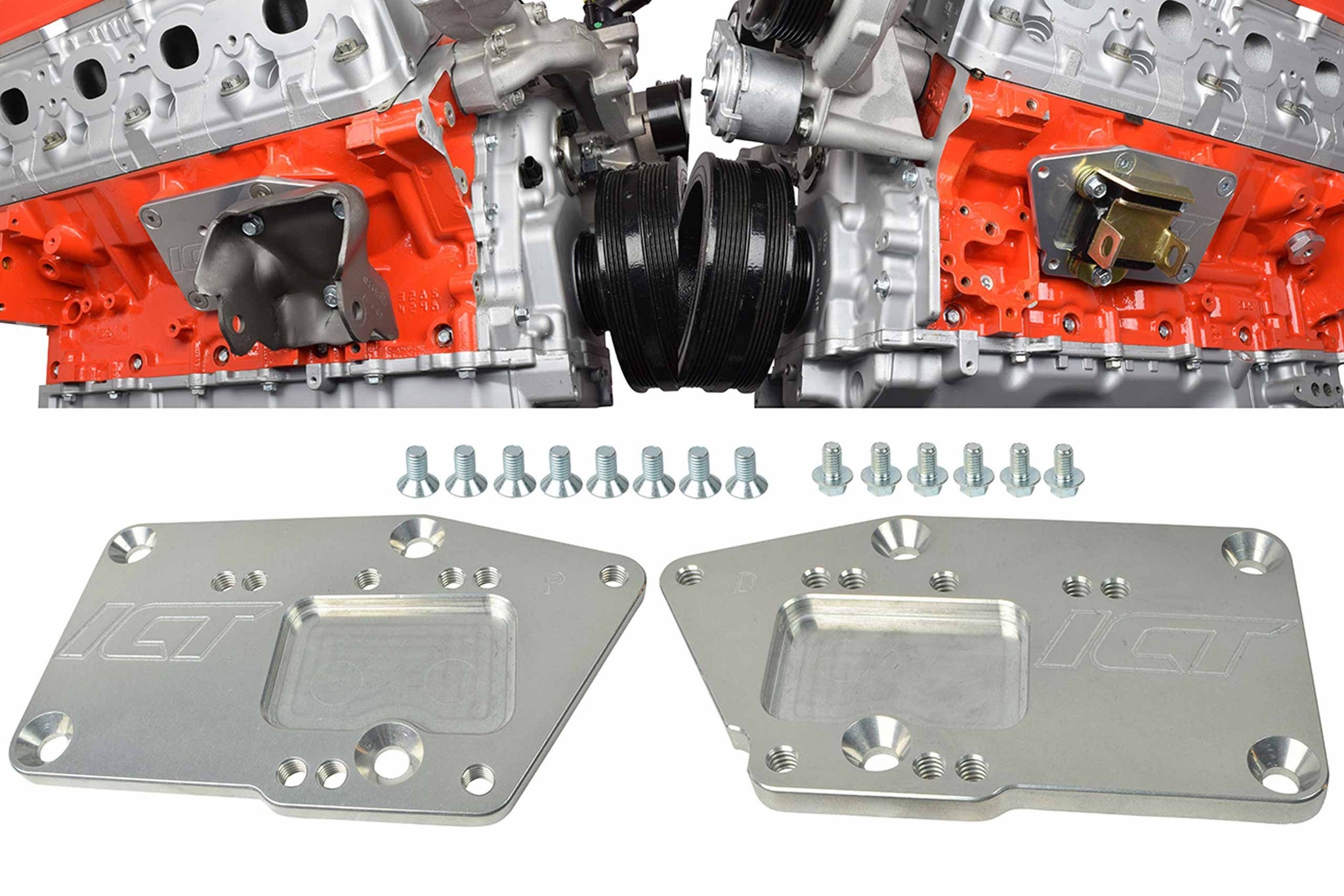

ICT Billet Gen V, LT Engine Swap / Engine Mount Brackets allow a LT series engine to be bolted into a vehicle that originally had a small block Chevy engine.
Made with OEM specifications for the best possible fitment into your vehicle
NOT compatible with belt driven vacuum pumps or OEM low mounted A/C compressor
These plates will move the crankshaft centerline up .72" in the vehicle
Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

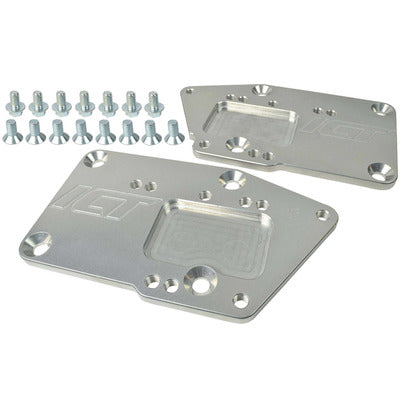

Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts
Natural aluminum finish
If removing the vacuum pump, two (2) M12-1.75 plugs (GM 11546665) (ICT Billet SKU# 551298) will need to be installed into block-oil ports.

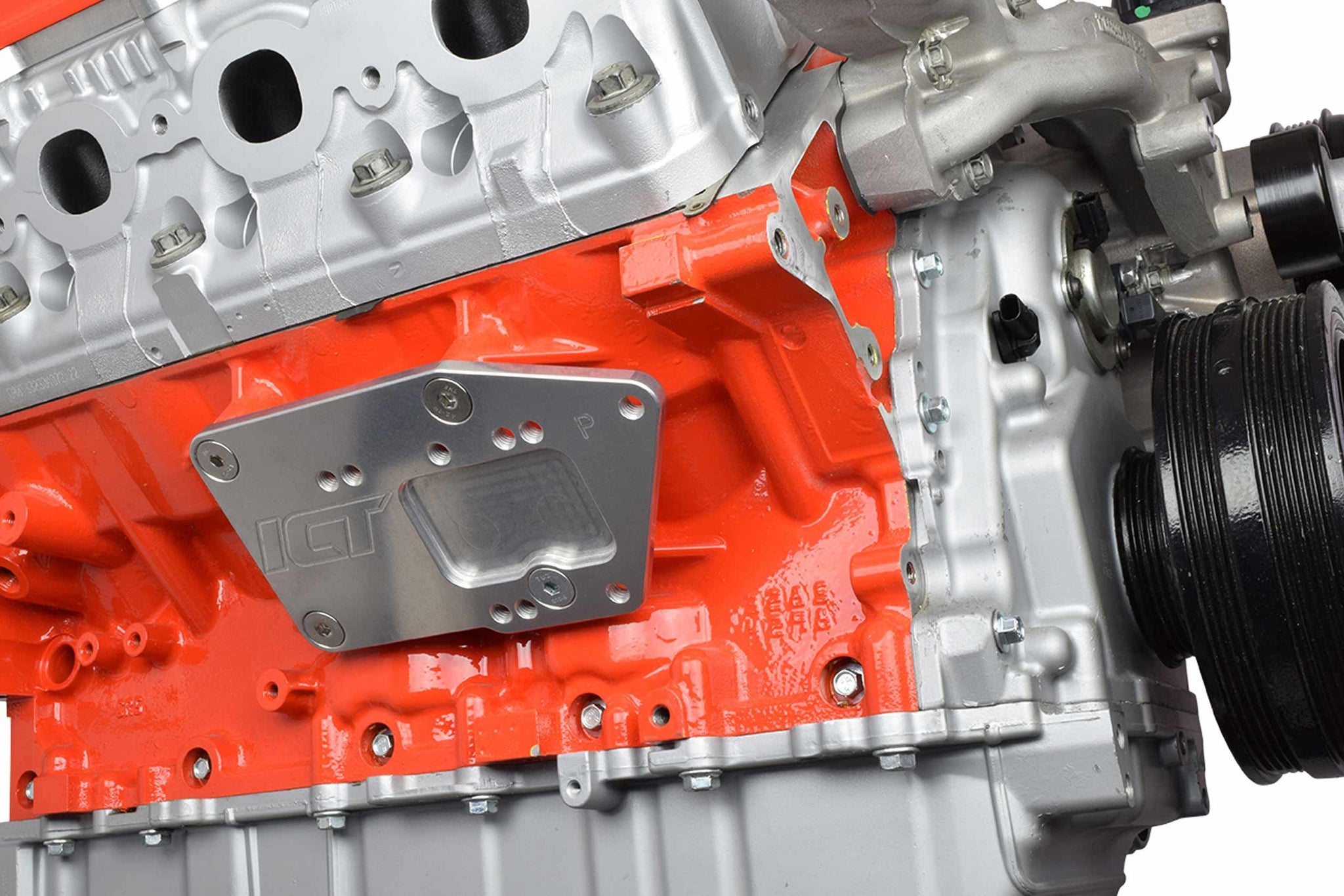

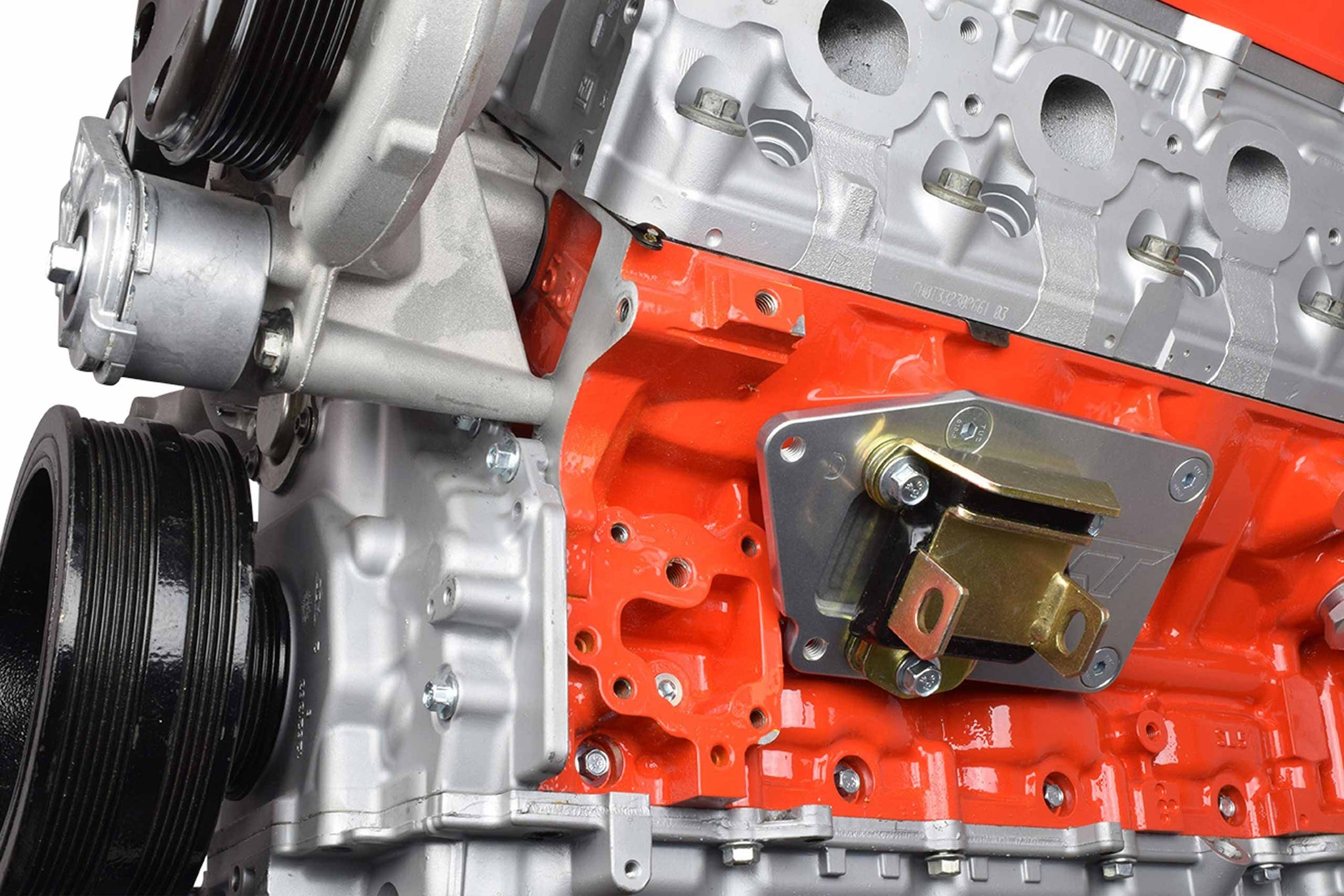

There are 3 positions for maximum adjustment of engine (from OEM bellhousing position ~forward most position shown in photos~, Secondary positions are: 1.625", and 2.25" engine moved frontward)
These swap plates will shift the crankshaft centerline up .725" above factory small block location.
At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning.
To re-use your factory Gen 5 LT A/C compressor (and air pump on truck engines) you will need to use the 1.625" engine moved forward position on the swap plates, than trim the swap plates back. Note, this will most likely cause your oil pan to have interference with your vehicles frame (or steering linkage), with poor aftermarket oil pan options currently available.
